Stealth Acoustics B22G (Pair)
BRAND NEW - 5 YEARS MANUFACTURER'S WARRANTY
Dispatch in 1-2 days from Australian Distributor
TAKE AN ADDITIONAL 2% OFF THE PRICE IF PAYING BY CASH / BANK DEPOSIT
FREE delivery or local pickup by appointment at Carlingford NSW.
WHY SHOP WITH US?
- Exceptional personalised customer service and after sales support as per our fantastic reviews on Google, productreview.com.au and eBay store.
- Every purchase will support a charity of your choice (or our default charity) and make this world a better place. Please see our Philanthropy page.
- Extremely competitive pricing, please contact us to discuss further.
========
INVISIBLE SUBWOOFER

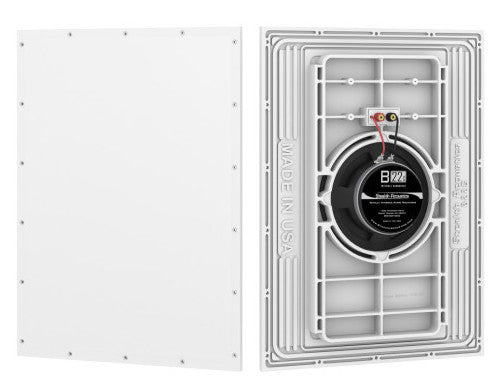

The Stealth Acoustics model B22G is a compact, two-panel monaural subwoofer speaker system that becomes completely invisible after installation. The subwoofer has a heavy duty rigid frame that attaches directly to standard structural framing. The paintable active diaphragm face is bonded to the frame of the speaker panel, creating an active area surrounded by a stable mounting area. Each panel incorporates an acoustically coupled, high-quality, high-power 8” (203 mm) cone woofer.
Stealth Acoustics recommends the companion Model SA255 250-watt subwoofer amplifier/crossover as a matched amplifier for the B22G subwoofer speakers. Stealth Acoustics also offers a line of full-range speaker panels that when combined with the B22G, deliver a complete, totally invisible audio solution.
The B22G may be installed in either the wall or ceiling. It can be finished on site with latex paint, light wallpaper, fabrics and selected texture coats. There is no need for special vellums or other nonstandard wallboard finishing materials. Advanced finishing methods such as Venetian plaster and select veneers are supported using special techniques.
RECOMMENDED USES
SPECIFICATIONS
Frequency Response: 30Hz to 150Hz
Power Capacity:
Driver Components:
Polar Dispersion: 170 degrees vertical and horizontal
Crossover Frequency: Requires amplifier with low pass filter. 80Hz with 18 dB slope recommended.
Dimensions:
Shipping Weight: 30 lbs. (13.6 kg) per pair
Included Accessories:
Dispatch in 1-2 days from Australian Distributor
TAKE AN ADDITIONAL 2% OFF THE PRICE IF PAYING BY CASH / BANK DEPOSIT
FREE delivery or local pickup by appointment at Carlingford NSW.
WHY SHOP WITH US?
- Exceptional personalised customer service and after sales support as per our fantastic reviews on Google, productreview.com.au and eBay store.
- Every purchase will support a charity of your choice (or our default charity) and make this world a better place. Please see our Philanthropy page.
- Extremely competitive pricing, please contact us to discuss further.
========
INVISIBLE SUBWOOFER
The Stealth Acoustics model B22G is a compact, two-panel monaural subwoofer speaker system that becomes completely invisible after installation. The subwoofer has a heavy duty rigid frame that attaches directly to standard structural framing. The paintable active diaphragm face is bonded to the frame of the speaker panel, creating an active area surrounded by a stable mounting area. Each panel incorporates an acoustically coupled, high-quality, high-power 8” (203 mm) cone woofer.
Stealth Acoustics recommends the companion Model SA255 250-watt subwoofer amplifier/crossover as a matched amplifier for the B22G subwoofer speakers. Stealth Acoustics also offers a line of full-range speaker panels that when combined with the B22G, deliver a complete, totally invisible audio solution.
The B22G may be installed in either the wall or ceiling. It can be finished on site with latex paint, light wallpaper, fabrics and selected texture coats. There is no need for special vellums or other nonstandard wallboard finishing materials. Advanced finishing methods such as Venetian plaster and select veneers are supported using special techniques.
RECOMMENDED USES
- Background Distributed Audio, designed for use with the LR6g for extra impact in critical listening zones.
- Best for in-wall or in-ceiling installations
SPECIFICATIONS
Frequency Response: 30Hz to 150Hz
Power Capacity:
- 80 watts RMS
- 50 watts minimum recommended power
Driver Components:
- One 8” (203 mm) low profile woofer with one 1-1/2” (38 mm) voice coil per panel
- One ceramic 20 oz. (622 gr) magnet
Polar Dispersion: 170 degrees vertical and horizontal
Crossover Frequency: Requires amplifier with low pass filter. 80Hz with 18 dB slope recommended.
Dimensions:
- Width: 15-7/8” (403 mm)
- Height: 22” (559 mm)
- Mounting Depth: 2-1/2” (64 mm)
Shipping Weight: 30 lbs. (13.6 kg) per pair
Included Accessories:
- Mounting shims
- Mounting screws
- Terminal wrench
