Stealth Acoustics LR3G (Pair)
BRAND NEW - 5 YEARS MANUFACTURER'S WARRANTY
Dispatch in 1-2 days from Australian Distributor
TAKE AN ADDITIONAL 2% OFF THE PRICE IF PAYING BY CASH / BANK DEPOSIT
FREE delivery or local pickup by appointment at Carlingford NSW.
WHY SHOP WITH US?
- Exceptional personalised customer service and after sales support as per our fantastic reviews on Google, productreview.com.au and eBay store.
- Every purchase will support a charity of your choice (or our default charity) and make this world a better place. Please see our Philanthropy page.
- Extremely competitive pricing, please contact us to discuss further.
========
FULL RANGE, INVISIBLE IN-WALL OR IN-CEILING SPEAKER

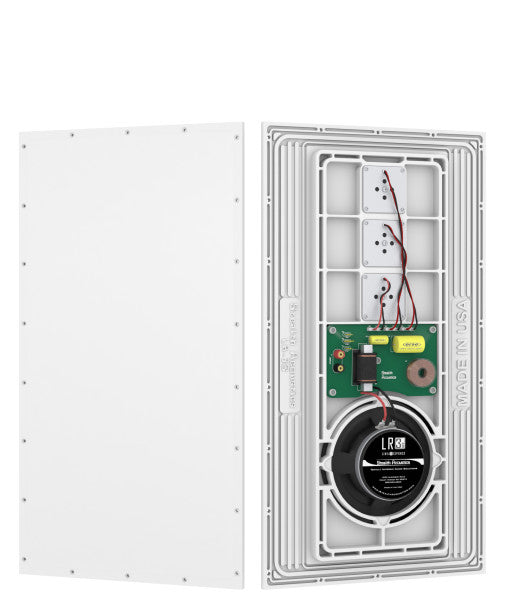

The Stealth Acoustics model LR3G is a 3-way, full-range speaker system that becomes completely invisible after installation. The speaker has a rigid frame that attaches directly to standard structural framing. The paintable active diaphragm face is bonded to the frame of the speaker panel, creating an active area surrounded by a stable mounting area.
The Stealth Acoustics LR3G incorporates an acoustically coupled high-power 8” cone woofer with 3 directly coupled 25 mm neo-magnet high-frequency motors. Advanced internal carbon fibre materials allow for smooth frequency extension to 20 kHz. When the LR3G is installed in standard insulated 2” x 4” framing and allowed to function in a full 8 foot stud bay, frequency response below 45 Hz can be achieved. The LR3G contains three independent protection circuits (low, mid-range and high frequency sections) that automatically reset upon reduction of excessive amplifier power.

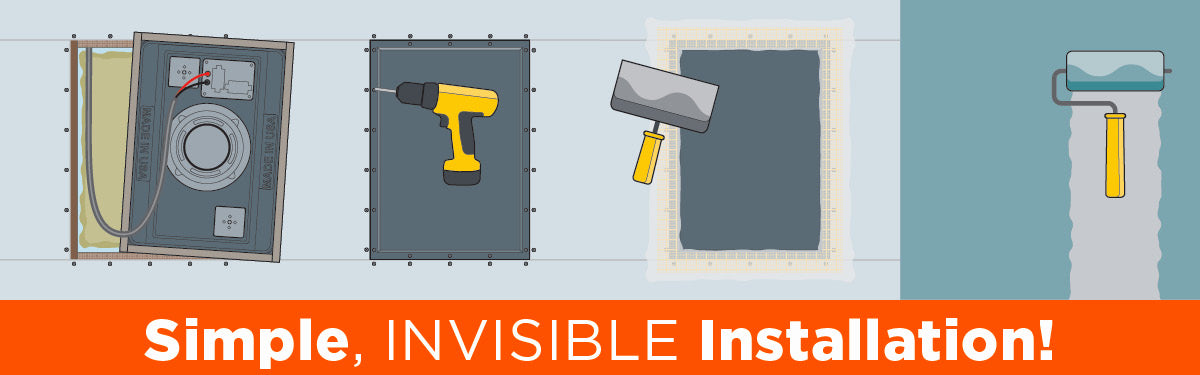

The LR3G may be installed in either the wall or ceiling and on-site finishing options include latex paint, light wallpaper, fabrics and selected texture coats. There is no need for special vellums or other nonstandard wallboard finishing materials. Advanced finishing methods such as Venetian plaster and select veneers are supported using special techniques.
RECOMMENDED USES
Cinema Front Soundstage (LCR)
Premium Distributed Audio and Sound Reinforcement
Best for in-wall installations.
SPECIFICATIONS
Frequency Response: 40Hz to 20kHz (see Figure 1)
Power Capacity:
Sensitivity: 83 dB (1 watt / 1 meter)
Driver Components:
Polar Dispersion: 170 degrees vertical and horizontal
Dimensions:
Shipping Weight: 43 lbs. (19.5 kg) per pair
Included Accessories:
Dispatch in 1-2 days from Australian Distributor
TAKE AN ADDITIONAL 2% OFF THE PRICE IF PAYING BY CASH / BANK DEPOSIT
FREE delivery or local pickup by appointment at Carlingford NSW.
WHY SHOP WITH US?
- Exceptional personalised customer service and after sales support as per our fantastic reviews on Google, productreview.com.au and eBay store.
- Every purchase will support a charity of your choice (or our default charity) and make this world a better place. Please see our Philanthropy page.
- Extremely competitive pricing, please contact us to discuss further.
========
FULL RANGE, INVISIBLE IN-WALL OR IN-CEILING SPEAKER
The Stealth Acoustics model LR3G is a 3-way, full-range speaker system that becomes completely invisible after installation. The speaker has a rigid frame that attaches directly to standard structural framing. The paintable active diaphragm face is bonded to the frame of the speaker panel, creating an active area surrounded by a stable mounting area.
The Stealth Acoustics LR3G incorporates an acoustically coupled high-power 8” cone woofer with 3 directly coupled 25 mm neo-magnet high-frequency motors. Advanced internal carbon fibre materials allow for smooth frequency extension to 20 kHz. When the LR3G is installed in standard insulated 2” x 4” framing and allowed to function in a full 8 foot stud bay, frequency response below 45 Hz can be achieved. The LR3G contains three independent protection circuits (low, mid-range and high frequency sections) that automatically reset upon reduction of excessive amplifier power.
The LR3G may be installed in either the wall or ceiling and on-site finishing options include latex paint, light wallpaper, fabrics and selected texture coats. There is no need for special vellums or other nonstandard wallboard finishing materials. Advanced finishing methods such as Venetian plaster and select veneers are supported using special techniques.
RECOMMENDED USES
Cinema Front Soundstage (LCR)
Premium Distributed Audio and Sound Reinforcement
Best for in-wall installations.
SPECIFICATIONS
Frequency Response: 40Hz to 20kHz (see Figure 1)
Power Capacity:
- 200 watts RMS
- 75 watts minimum recommended power
Sensitivity: 83 dB (1 watt / 1 meter)
Driver Components:
- High frequency: 1” (25 mm) neodymium motor
- Midrange frequency: Two 1” (25 mm) neodymium motors
- Low-frequency: 1.5” (38 mm) voice coil, 8” (203 mm) woofer
- Ceramic 20 oz. (622 gr) magnet
Polar Dispersion: 170 degrees vertical and horizontal
Dimensions:
- Width: 15-7/8” (403 mm)
- Height: 30” (762 mm)
- Mounting Depth: 2-1/2” (63.5 mm)
Shipping Weight: 43 lbs. (19.5 kg) per pair
Included Accessories:
- Mounting shims
- Mounting screws
- Terminal wrench
