Stealth Acoustics LR8G (Pair)
BRAND NEW - 5 YEARS MANUFACTURER'S WARRANTY
Dispatch in 1-2 days from Australian Distributor
TAKE AN ADDITIONAL 2% OFF THE PRICE IF PAYING BY CASH / BANK DEPOSIT
FREE delivery or local pickup by appointment at Carlingford NSW.
WHY SHOP WITH US?
- Exceptional personalised customer service and after sales support as per our fantastic reviews on Google, productreview.com.au and eBay store.
- Every purchase will support a charity of your choice (or our default charity) and make this world a better place. Please see our Philanthropy page.
- Extremely competitive pricing, please contact us to discuss further.
========
2-WAY INVISIBLE IN-WALL OR IN-CEILING SPEAKER

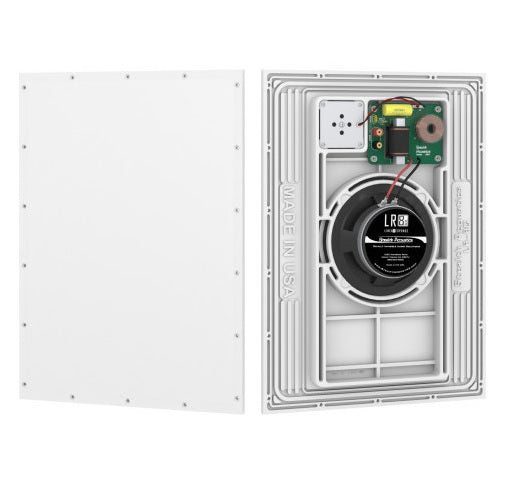

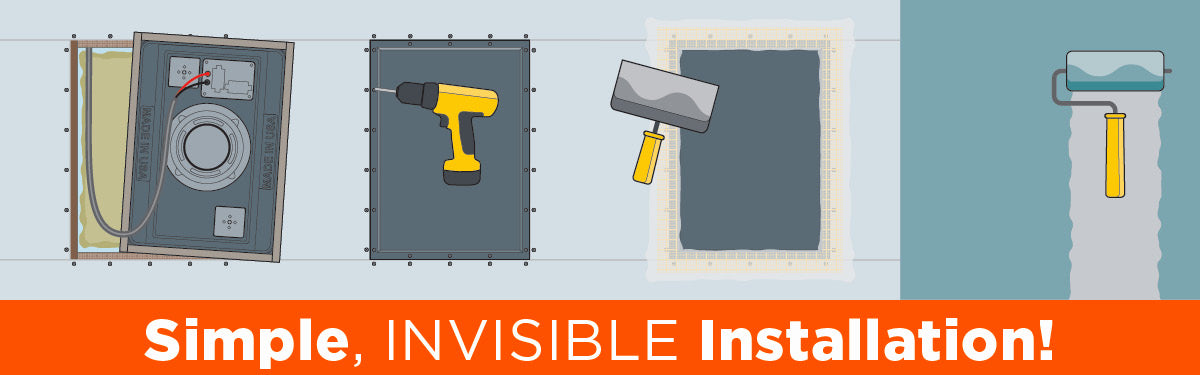

The Stealth Acoustics model LR8G is a two-way, full-range loudspeaker system that becomes completely invisible after installation. The loudspeaker has a rigid frame that attaches directly to standard structural framing. The paintable active diaphragm face is bonded to the frame of the speaker panel, creating an active area surrounded by a stable mounting area. Installation instructions are shown on a paper overlay that is to be removed before installation. The overlay can also be used as a cutting template for retrofitting the speakers into existing wallboard.
The LR8G may be installed in either the wall or ceiling and on-site finishing options include latex paint, light wallpaper, fabrics and selected texture coats. There is no need for special vellums or other nonstandard wallboard finishing materials. Advanced finishing methods such as Venetian plaster and select veneers are supported using special techniques.
The Stealth Acoustics LR8G incorporates an acoustically coupled high quality, high-power 8” cone woofer and a direct coupled 25 mm neo-magnet high-frequency motor. Advanced internal carbon fibre materials allow for smooth frequency extension to 20 kHz. When the LR8G is installed in standard insulated 2” x 4” framing and allowed to function in a full 8 foot stud bay, frequency response below 40 Hz can be achieved. The LR8G contains two independent protection circuits (high-frequency and low-frequency sections) that automatically reset upon reduction of excessive amplifier power.
SPECIFICATIONS
Frequency Response: 45Hz to 20kHz
Power Capacity:
Sensitivity: 83 dB (1 watt / 1 meter)
Driver Components:
Polar Dispersion: 170 degrees vertical and horizontal
Dimensions:
Shipping Weight: 32 lbs. (14.5 kg) per pair
Included Accessories:
Dispatch in 1-2 days from Australian Distributor
TAKE AN ADDITIONAL 2% OFF THE PRICE IF PAYING BY CASH / BANK DEPOSIT
FREE delivery or local pickup by appointment at Carlingford NSW.
WHY SHOP WITH US?
- Exceptional personalised customer service and after sales support as per our fantastic reviews on Google, productreview.com.au and eBay store.
- Every purchase will support a charity of your choice (or our default charity) and make this world a better place. Please see our Philanthropy page.
- Extremely competitive pricing, please contact us to discuss further.
========
2-WAY INVISIBLE IN-WALL OR IN-CEILING SPEAKER
The Stealth Acoustics model LR8G is a two-way, full-range loudspeaker system that becomes completely invisible after installation. The loudspeaker has a rigid frame that attaches directly to standard structural framing. The paintable active diaphragm face is bonded to the frame of the speaker panel, creating an active area surrounded by a stable mounting area. Installation instructions are shown on a paper overlay that is to be removed before installation. The overlay can also be used as a cutting template for retrofitting the speakers into existing wallboard.
The LR8G may be installed in either the wall or ceiling and on-site finishing options include latex paint, light wallpaper, fabrics and selected texture coats. There is no need for special vellums or other nonstandard wallboard finishing materials. Advanced finishing methods such as Venetian plaster and select veneers are supported using special techniques.
The Stealth Acoustics LR8G incorporates an acoustically coupled high quality, high-power 8” cone woofer and a direct coupled 25 mm neo-magnet high-frequency motor. Advanced internal carbon fibre materials allow for smooth frequency extension to 20 kHz. When the LR8G is installed in standard insulated 2” x 4” framing and allowed to function in a full 8 foot stud bay, frequency response below 40 Hz can be achieved. The LR8G contains two independent protection circuits (high-frequency and low-frequency sections) that automatically reset upon reduction of excessive amplifier power.
SPECIFICATIONS
Frequency Response: 45Hz to 20kHz
Power Capacity:
- 120 watts RMS
- 60 watts minimum recommended power
Sensitivity: 83 dB (1 watt / 1 meter)
Driver Components:
- High frequency: 1” (25 mm) neodymium motor
- Low-frequency: 1” (25 mm) voice coil, 8” (203 mm) woofer, Ceramic 20 oz. (622 gr) magnet
Polar Dispersion: 170 degrees vertical and horizontal
Dimensions:
- Width: 15-7/8” (403 mm)
- Height: 22” (559 mm)
- Mounting Depth: 2-1/2” (63.5 mm)
Shipping Weight: 32 lbs. (14.5 kg) per pair
Included Accessories:
- Mounting shims
- Mounting screws
- Terminal wrench
