Stealth Acoustics LRX-85 (Pair)
BRAND NEW - 5 YEARS MANUFACTURER'S WARRANTY
Dispatch in 1-2 days from Australian Distributor
TAKE AN ADDITIONAL 2% OFF THE PRICE IF PAYING BY CASH / BANK DEPOSIT
FREE delivery or local pickup by appointment at Carlingford NSW.
WHY SHOP WITH US?
- Exceptional personalised customer service and after sales support as per our fantastic reviews on Google, productreview.com.au and eBay store.
- Every purchase will support a charity of your choice (or our default charity) and make this world a better place. Please see our Philanthropy page.
- Extremely competitive pricing, please contact us to discuss further.
========
3-WAY FULL-RANGE SEVEN-ELEMENT SYSTEM
The model LRX-85 invisible speaker is a premium, 3-way, two panel system The LRX-85 is truly a powerful and complete full-range solution, requiring no special bass-limiting filters, ancillary protection circuits or external subwoofers. For even greater ability, an active, bi-amplified LRX-85ACT version is also available.
300watt power handling enables output up to 105dB with premium extended range sound quality. The LRX-85 performs as an exemplary invisible speaker in a wide range of applications, including home theatres, high-impact distributed audio and critical listening environments where aesthetic needs demand no visible presence of a loudspeaker.
The LRX-85 utilizes separate, easy to install, flat front panels for mid-high and bass reproduction, improving performance while minimizing intermodulation distortion. The two panels may be mounted as far a 1meter apart and still provide quality outcomes.
The mid-high panel incorporates four 25watt neodymium midrange motors and one 25watt neodymium high-frequency motor aligned in Stealth’s Quad-Balanced Midrange Drive™ configuration. Advanced internal materials and smooth sounding FidelityGlass™ panel face allow for upper frequency response to 20 kHz. A multi-stage passive crossover is provided to allow a single speaker line from the amplifier to feed both mid-high and bass panels. The LRX-85 crossover contains three independent self-resetting protection circuits to protect the speaker from excessive amplifier power, ensuring maximum long-term reliability.
The separate dual 8” high-power cone woofer bass-stage panel provides extended bass response down to 35Hz when the panel is installed in a recommended back box and properly tuned. The result is an impressive sounding loudspeaker rivalling visible alternatives.

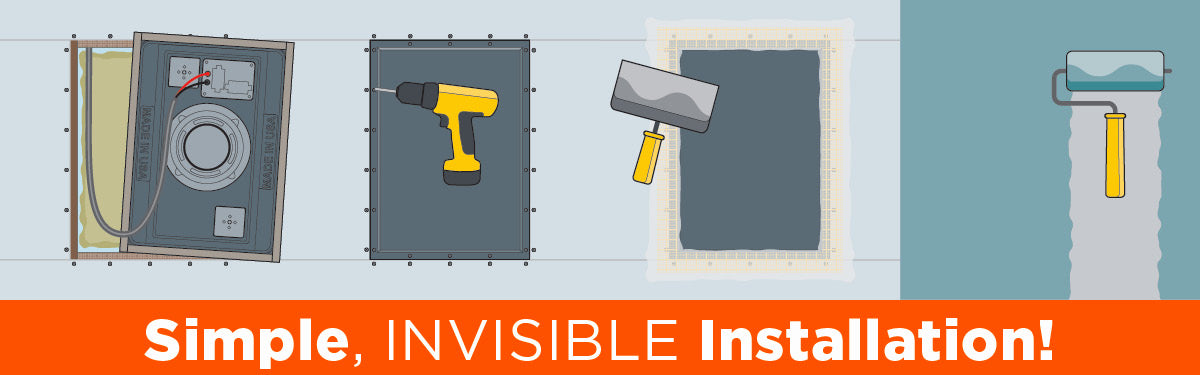

Stealth Acoustics’ invisibility offers a powerful advantage over traditional loudspeakers because they can be placed wherever they sound best, free of visual concerns that may conflict with architectural features. The LRX-85 is designed to be installed into standard wall or ceiling constructions with many on-site finishing options that include paint, light wallpaper, fabrics, wood veneers, vinyl graphics and selected texture coats. There is no need for non-standard wallboard finishing materials. Installation instructions are shown on a paper overlay that is to be removed before installation. The overlay can also be used as a cutting template for retrofitting the speakers into existing wallboard. Unique mounting and advanced finishing methods may be accomplished using special techniques.
THE FLAGSHIP “BIG-ROOM” SPEAKER!

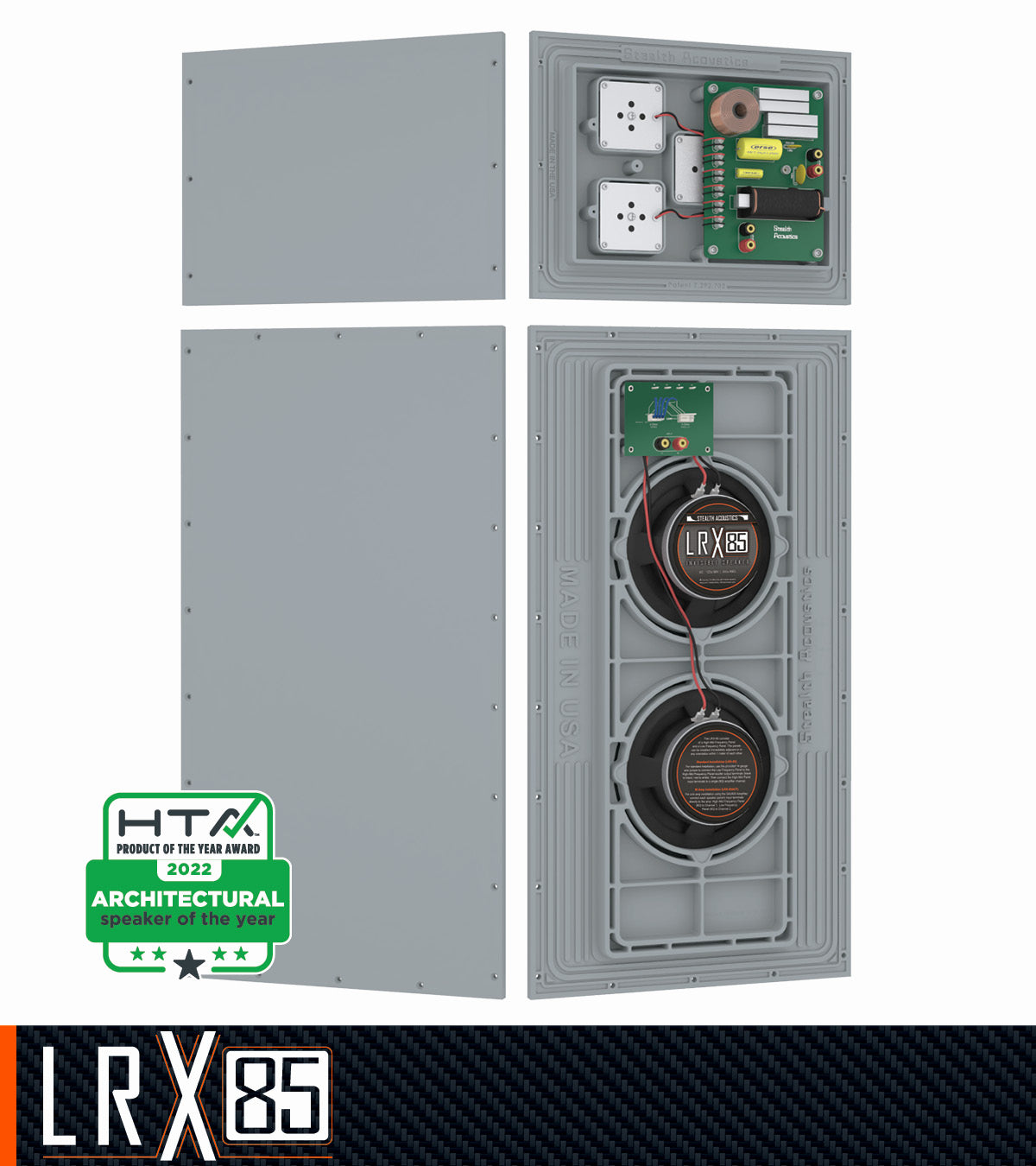

ANATOMY OF A STEALTH INVISIBLE SPEAKER
1. Low Frequency Cone Woofer Driver
2. Transducer High/Mid Frequency Driver
3. Circuit with Crossover, Protection and/or Speaker Wire Terminals
4. FidelityGlass™ Radiating Diaphragm
5. Speaker Perimeter Screw Flange
SPECIFICATIONS
Frequency Response: 35Hz to 20kHz
Power Capacity:
Sensitivity: 84 dB (1 watt / 1 meter)
Driver Components:
System Impedance: 8Ω nominal
Polar Dispersion: 170 degrees vertical and horizontal
Dimensions LRX-85-HM (High-Mid Panel only):
Included Accessories:
Dispatch in 1-2 days from Australian Distributor
TAKE AN ADDITIONAL 2% OFF THE PRICE IF PAYING BY CASH / BANK DEPOSIT
FREE delivery or local pickup by appointment at Carlingford NSW.
WHY SHOP WITH US?
- Exceptional personalised customer service and after sales support as per our fantastic reviews on Google, productreview.com.au and eBay store.
- Every purchase will support a charity of your choice (or our default charity) and make this world a better place. Please see our Philanthropy page.
- Extremely competitive pricing, please contact us to discuss further.
========
3-WAY FULL-RANGE SEVEN-ELEMENT SYSTEM
The model LRX-85 invisible speaker is a premium, 3-way, two panel system The LRX-85 is truly a powerful and complete full-range solution, requiring no special bass-limiting filters, ancillary protection circuits or external subwoofers. For even greater ability, an active, bi-amplified LRX-85ACT version is also available.
300watt power handling enables output up to 105dB with premium extended range sound quality. The LRX-85 performs as an exemplary invisible speaker in a wide range of applications, including home theatres, high-impact distributed audio and critical listening environments where aesthetic needs demand no visible presence of a loudspeaker.
The LRX-85 utilizes separate, easy to install, flat front panels for mid-high and bass reproduction, improving performance while minimizing intermodulation distortion. The two panels may be mounted as far a 1meter apart and still provide quality outcomes.
The mid-high panel incorporates four 25watt neodymium midrange motors and one 25watt neodymium high-frequency motor aligned in Stealth’s Quad-Balanced Midrange Drive™ configuration. Advanced internal materials and smooth sounding FidelityGlass™ panel face allow for upper frequency response to 20 kHz. A multi-stage passive crossover is provided to allow a single speaker line from the amplifier to feed both mid-high and bass panels. The LRX-85 crossover contains three independent self-resetting protection circuits to protect the speaker from excessive amplifier power, ensuring maximum long-term reliability.
The separate dual 8” high-power cone woofer bass-stage panel provides extended bass response down to 35Hz when the panel is installed in a recommended back box and properly tuned. The result is an impressive sounding loudspeaker rivalling visible alternatives.
Stealth Acoustics’ invisibility offers a powerful advantage over traditional loudspeakers because they can be placed wherever they sound best, free of visual concerns that may conflict with architectural features. The LRX-85 is designed to be installed into standard wall or ceiling constructions with many on-site finishing options that include paint, light wallpaper, fabrics, wood veneers, vinyl graphics and selected texture coats. There is no need for non-standard wallboard finishing materials. Installation instructions are shown on a paper overlay that is to be removed before installation. The overlay can also be used as a cutting template for retrofitting the speakers into existing wallboard. Unique mounting and advanced finishing methods may be accomplished using special techniques.
THE FLAGSHIP “BIG-ROOM” SPEAKER!
ANATOMY OF A STEALTH INVISIBLE SPEAKER
1. Low Frequency Cone Woofer Driver
2. Transducer High/Mid Frequency Driver
3. Circuit with Crossover, Protection and/or Speaker Wire Terminals
4. FidelityGlass™ Radiating Diaphragm
5. Speaker Perimeter Screw Flange
SPECIFICATIONS
Frequency Response: 35Hz to 20kHz
Power Capacity:
- 300 watts RMS
- 120 watts minimum recommended power
Sensitivity: 84 dB (1 watt / 1 meter)
Driver Components:
- High frequency: 1" (25 mm) neodymium driver
- Midrange frequency: Four 1⅛" (30 mm) neodymium drivers
- Low-frequency: Two 1½" (38 mm) voice coil, 8" (203 mm) woofers with 20 oz. (622 gr) ceramic magnet
System Impedance: 8Ω nominal
Polar Dispersion: 170 degrees vertical and horizontal
Dimensions LRX-85-HM (High-Mid Panel only):
- Width: 15⅞" (403 mm)
- Height: 12" (305 mm)
- Mounting Depth: 2¾" (70 mm)
- Width: 15⅞" (403 mm)
- Height: 30" (762 mm)
- Mounting Depth: 2½" (64 mm)
Included Accessories:
- Mounting shims
- Mounting screws
- Terminal wrench
