Stealth Acoustics SLR8G
BRAND NEW - 5 YEARS MANUFACTURER'S WARRANTY
Dispatch in 1-2 days from Australian Distributor
TAKE AN ADDITIONAL 2% OFF THE PRICE IF PAYING BY CASH / BANK DEPOSIT
FREE delivery or local pickup by appointment at Carlingford NSW.
WHY SHOP WITH US?
- Exceptional personalised customer service and after sales support as per our fantastic reviews on Google, productreview.com.au and eBay store.
- Every purchase will support a charity of your choice (or our default charity) and make this world a better place. Please see our Philanthropy page.
- Extremely competitive pricing, please contact us to discuss further.
========
FULL RANGE, 2-WAY STEREO PANEL (SINGLE)
The Stealth Acoustics model SLR8G is a dual channel, full-range speaker system that is most popularly used with dispersed audio systems since it can play both stereo channels as a single panel. The SLR8G has a rigid frame that attaches directly to standard structural framing becomes completely invisible after installation. The paintable active diaphragm face is bonded to the frame of the speaker panel, creating an active area surrounded by a stable mounting area.
The SLR8G incorporates an acoustically coupled high quality, high-power 8” cone woofer and two directly coupled 25 mm neo-magnet high-frequency motors. Advanced internal carbon fiber materials allow for smooth frequency extension to 20 kHz. When the SLR8G is installed in standard insulated 2” x 4” framing and allowed to function in a full 8 foot stud bay, frequency response below 45 Hz can be achieved. The SLR8G contains independent crossover sections and protection circuits (high-frequency and low-frequency sections) for each channel that automatically reset upon reduction of excessive amplifier power. This robust speaker is designed to last as long as your home does.

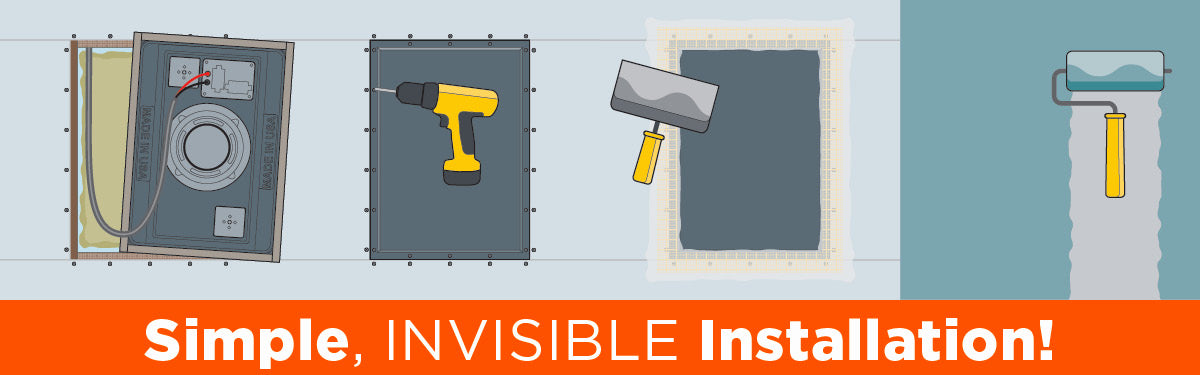

The SLR8G may be installed in either the wall or ceiling and on-site finishing options include latex paint, light wallpaper, fabrics and selected texture coats. There is no need for special vellums or other nonstandard wallboard finishing materials. Advanced finishing methods such as Venetian plaster and select veneers are supported using special techniques.
RECOMMENDED USES
SPECIFICATIONS
Frequency Response: 45Hz to 20kHz
Power Capacity:
Sensitivity: 82 dB (1 watt / 1 meter)
Driver Components:
Polar Dispersion: 170 degrees vertical and horizontal
Dimensions:
Shipping Weight: 18 lbs. (8.1 kg) shipped each
Included Accessories:
Dispatch in 1-2 days from Australian Distributor
TAKE AN ADDITIONAL 2% OFF THE PRICE IF PAYING BY CASH / BANK DEPOSIT
FREE delivery or local pickup by appointment at Carlingford NSW.
WHY SHOP WITH US?
- Exceptional personalised customer service and after sales support as per our fantastic reviews on Google, productreview.com.au and eBay store.
- Every purchase will support a charity of your choice (or our default charity) and make this world a better place. Please see our Philanthropy page.
- Extremely competitive pricing, please contact us to discuss further.
========
FULL RANGE, 2-WAY STEREO PANEL (SINGLE)
The Stealth Acoustics model SLR8G is a dual channel, full-range speaker system that is most popularly used with dispersed audio systems since it can play both stereo channels as a single panel. The SLR8G has a rigid frame that attaches directly to standard structural framing becomes completely invisible after installation. The paintable active diaphragm face is bonded to the frame of the speaker panel, creating an active area surrounded by a stable mounting area.

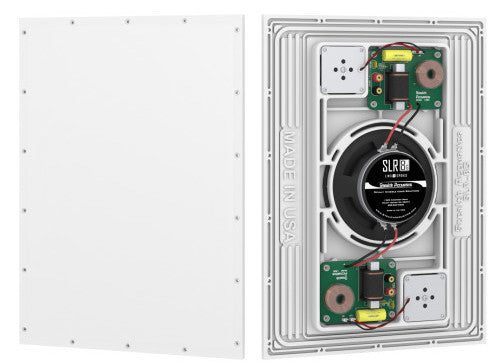

The SLR8G incorporates an acoustically coupled high quality, high-power 8” cone woofer and two directly coupled 25 mm neo-magnet high-frequency motors. Advanced internal carbon fiber materials allow for smooth frequency extension to 20 kHz. When the SLR8G is installed in standard insulated 2” x 4” framing and allowed to function in a full 8 foot stud bay, frequency response below 45 Hz can be achieved. The SLR8G contains independent crossover sections and protection circuits (high-frequency and low-frequency sections) for each channel that automatically reset upon reduction of excessive amplifier power. This robust speaker is designed to last as long as your home does.
The SLR8G may be installed in either the wall or ceiling and on-site finishing options include latex paint, light wallpaper, fabrics and selected texture coats. There is no need for special vellums or other nonstandard wallboard finishing materials. Advanced finishing methods such as Venetian plaster and select veneers are supported using special techniques.
RECOMMENDED USES
- Distributed Audio
- Cinema Surround
- Sound Masking
- Best for in-wall or in-ceiling installations
SPECIFICATIONS
Frequency Response: 45Hz to 20kHz
Power Capacity:
- 120 watts RMS
- 60 watts minimum recommended power
Sensitivity: 82 dB (1 watt / 1 meter)
Driver Components:
- High frequency: Two 1” (25 mm) neodymium motors
- Low-frequency: 1” (25 mm) voice coil, 8” (203 mm) woofer
- Ceramic 20 oz. (622 gr) magnet
Polar Dispersion: 170 degrees vertical and horizontal
Dimensions:
- Width: 15-7/8” (403 mm)
- Height: 22” (559 mm)
- Mounting Depth: 2-1/2” (63.5 mm)
Shipping Weight: 18 lbs. (8.1 kg) shipped each
Included Accessories:
- Mounting shims
- Mounting screws
- Terminal wrench
