AudioControl Director D4600

BRAND NEW - 5 YEARS MANUFACTURER'S WARRANTY

Australian Stock. Dispatch in 1-2 days from Australian Distributor. Showroom demonstration available for this product in Caringbah NSW, please contact us to make an appointment.

TAKE AN ADDITIONAL 2% OFF THE PRICE IF PAYING BY CASH / BANK DEPOSIT

FREE delivery or local pickup by appointment at Carlingford NSW.

WHY SHOP WITH US?
- Exceptionally high rating by our customers on Google Reviews, eBay and productreview.com.au

- Every purchase will support a charity of your choice (or our default charity) and make this world a better place. Please see our Philanthropy page.

- Extremely competitive pricing, please contact us to discuss further.

========

16-Channel High-Power Network DSP Amplifier

• 16 channels, up to 8 Zones
• 100W at 8 Ohms, 200W at 4 Ohms

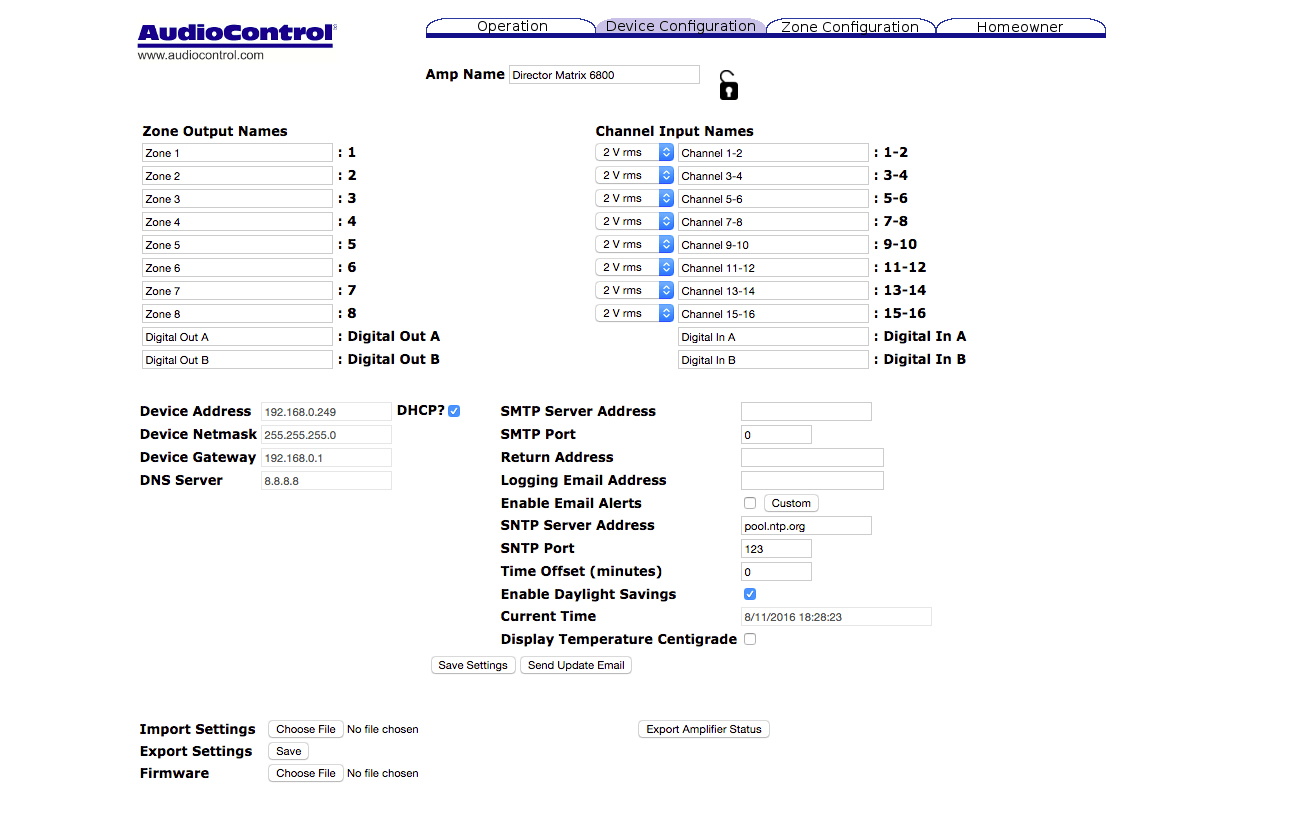

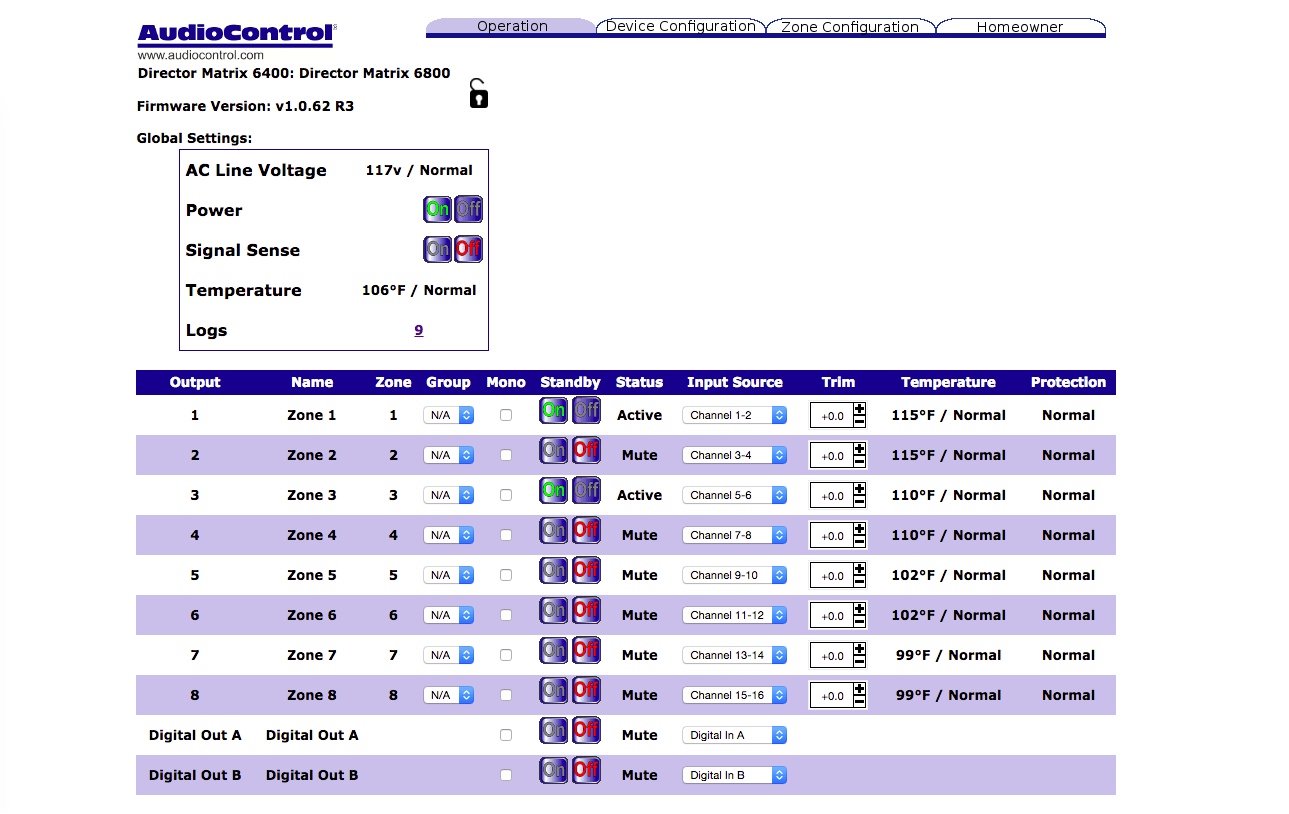

• Powerful Web interface with DSP Control
• Control System Integration

In the most demanding applications for all system amplification and IP programmable signal processing tasks, the Director® D Series Model D4600 has the power and flexibility to operate as a standalone DSP amplifier or partnered with 3rd party over-control systems from companies such as Control4, Crestron, RTI and Savant. Configure graphic and parametric equalization, crossover points, volume settings, zone grouping, network monitoring, and more using the onboard DSP.

16, 100-watt channels into 8 Ohms become 200 watts per channel with 4-Ohm loudspeaker loads. When two channels bridge outputs, that single channel produces 400 watts into 8 Ohms, more than enough power for even the most demanding loudspeaker configurations. Popular in the M Series, the D Series now features built-in speaker profiles from members of AudioControl’s Sound Partners™ program, offering DSP-optimized speaker calibrations from a growing list of prominent loudspeaker manufacturers.

Discover for yourself the countless critical ways in which AudioControl D series amplifiers contribute to successful commercial, residential, and Pro Audio systems.

FEATURES

• Network DSP Amplifier With Volume Control
• 16 Channels x 100 Watts at 8 Ohms (All Channels Driven)
• 16 Channels x 200 Watts at 4 Ohms (All Channels Driven)
• 8 Bridgeable Channels of 400 Watts into 8 Ohms
• Built-In Speaker Optimization Profiles
• Ethernet Port for Status Monitoring, Source Switching, and 12 Volt Trigger Control

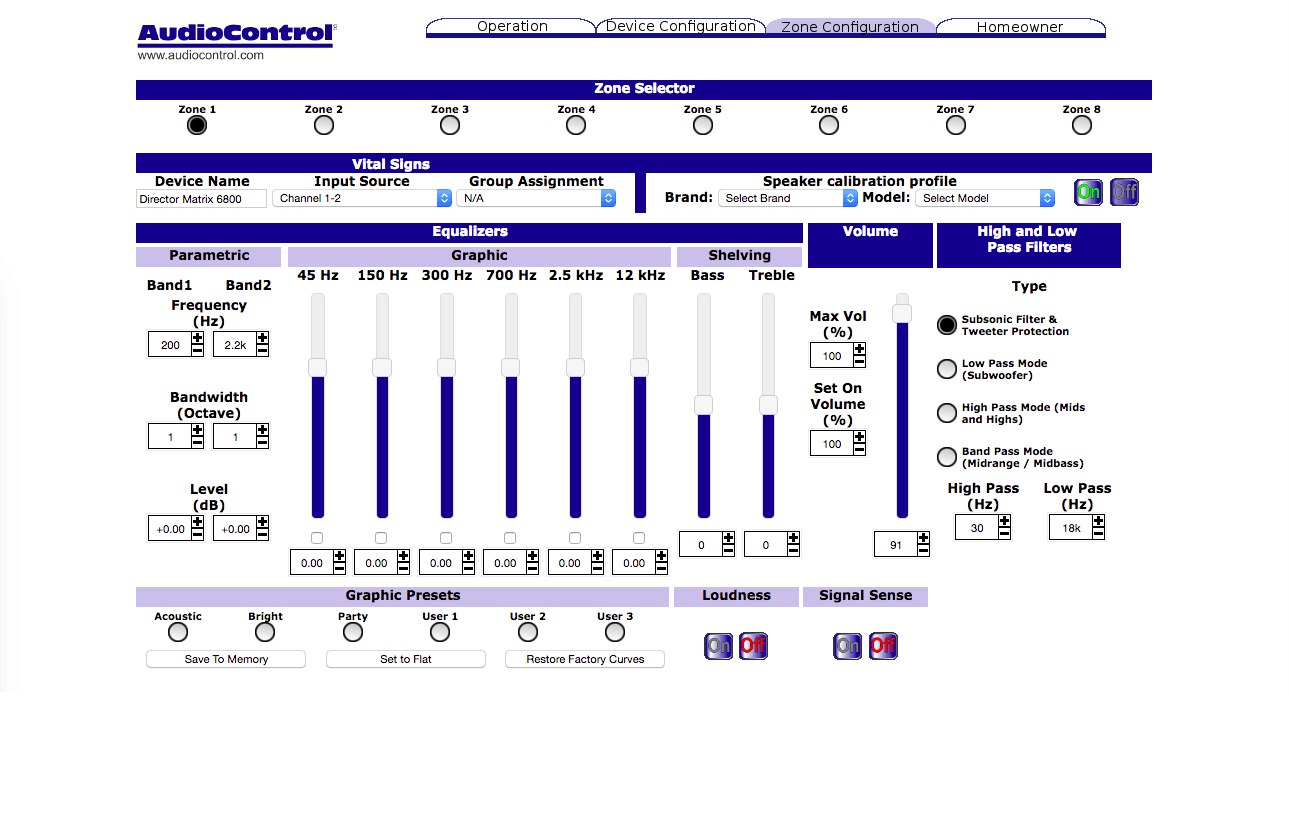

• Network Programmable Graphic & Parametric Equalization with User Memories
• Assignable Names for Amplifiers & All Zones
• Digital Signal Sense
• Programmable Electronic Crossover for Local Subwoofer Applications; Subsonic Filter
• AudioControl LightDrive™ Anti-Clipping Speaker Protection
• Local Inputs with Pass Through/Loop Outputs
• Dual Analog Bus Inputs
• Compact 2 U Rack Space (Includes Rack Mount Brackets)
• Commercial, Residential, and Pro Audio Compatible


POWER AND CONTROL AT YOUR FINGERTIPS
The Director® D Series feature on-board digital signal processing, graphic & parametric equalization by zone, network monitoring and programming, local and bus inputs, plus the addition of volume control, channel/zone grouping and zone audio presets. They also allow individual channel and zone selection via standard TCP/IP, delivering incredible power and AudioControl’s legendary audio performance.

SPEAKER OPTIMIZATION PROFILES
AudioControl has partnered with a growing number of prominent architectural loudspeaker manufacturers to implement speaker performance profiles directly accessible from The Director® D Series onboard DSP. Each speaker manufacturer (Dynaudio, Gray, Monitor Audio, James Loudspeaker, NUVO, Origin Acoustics, Stealth Acoustics, Triad) has provided critical performance data to AudioControl, enabling tailored profiles to be created and stored in software form. Factoring in the individual room acoustics for each home, these speaker profiles achieve an important step in providing the custom integrator the tools to deliver a premium entertainment experience by calibrating systems for their clients.

SPECIFICATIONS
INPUTS
Inputs: 8 Stereo Local Inputs, 2 Stereo Bus Input
Input Sensitivity: 1 Vrms for full output, level at maximum
Input Gain: 30 dB

OUTPUTS
Amplifier Channels: 16
Power Output (8Ω): 100W per channel
Power Output (4Ω): 200W per channel
Power Output (8Ω Bridged Mono): 400W
Minimum Speaker Load: 4Ω
Preamp Audio Outputs: 8 Stereo Local Loop Outputs, 1 Stereo Bus Loop Output

PERFORMANCE
Signal to Noise: >95 dB, A-wtd, ref full output
Crosstalk: > 80 dB @ 1 kHz
Damping Factor: >300

CONTROL
Remote Power Trigger: +12 VDC or Dry Contact Closure
Network Connection/Protocol: 10BaseT Ethernet TCP/IP
Communication Protocol: HTTP or Telnet

WEIGHT & DIMENSIONS
Dimensions Inches: 17” W x 15.5” D x 3.5” H (2 U)
Weight: 19.2 lbs (8.7 kg)

IN THE BOX
The Director Model D4600, Speaker Connectors, Remote Connector, Power Cord, Manual, Warranty
