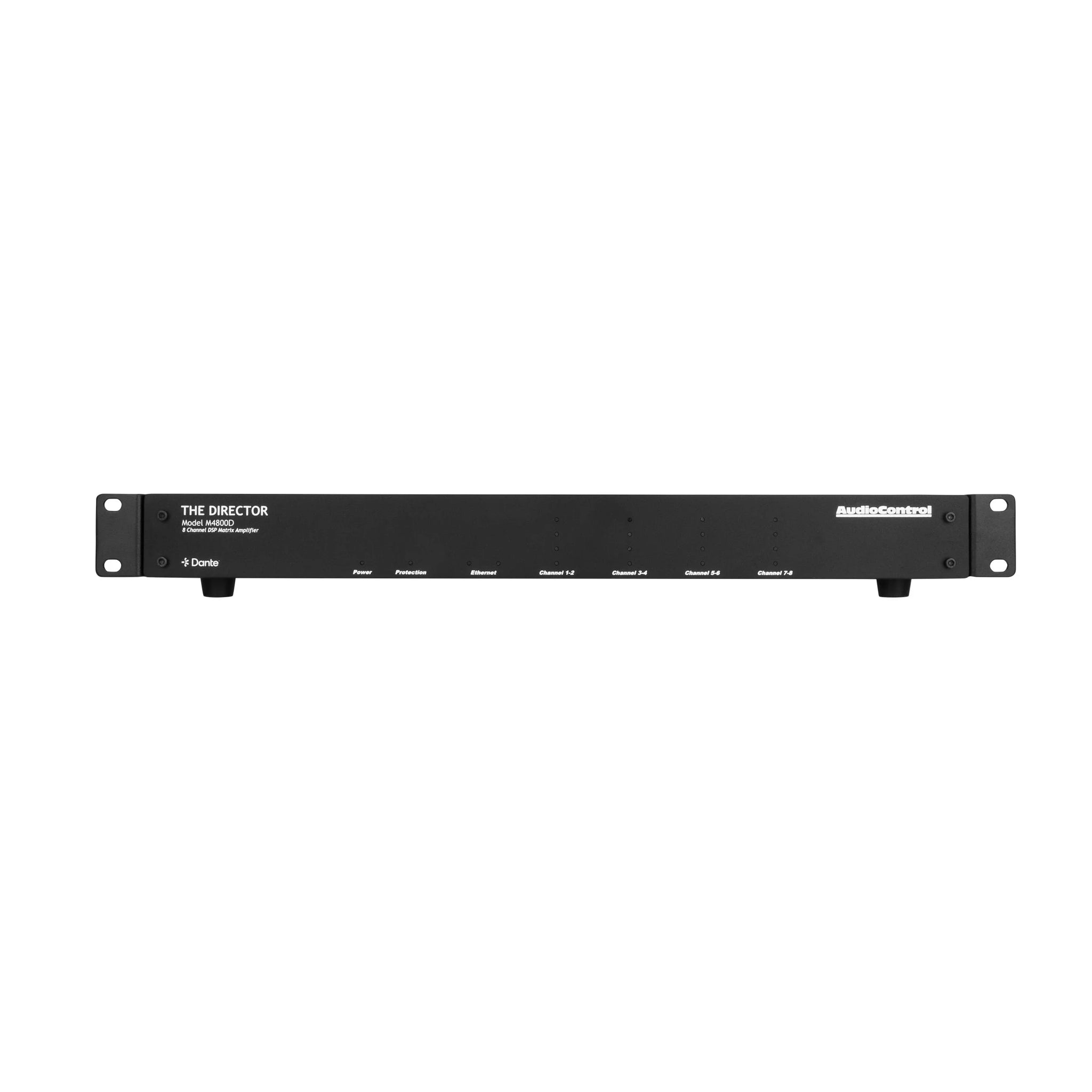

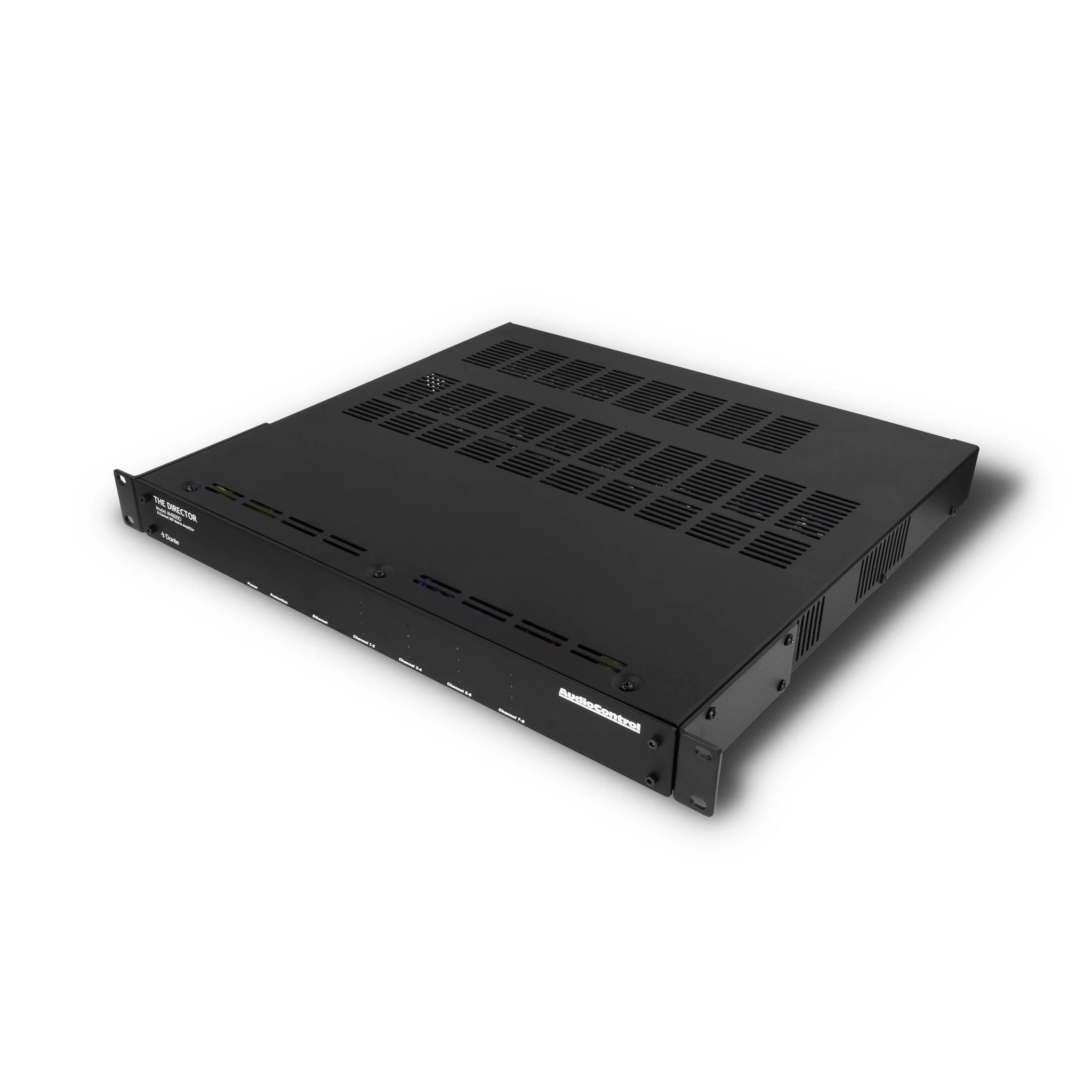

AudioControl Director M4800D

BRAND NEW - 5 YEARS MANUFACTURER'S WARRANTY

Australian Stock. Dispatch in 1-2 days from Australian Distributor. Showroom demonstration available for this product in Caringbah NSW, please contact us to make an appointment.

TAKE AN ADDITIONAL 2% OFF THE PRICE IF PAYING BY CASH / BANK DEPOSIT

FREE delivery or local pickup by appointment at Carlingford NSW.

WHY SHOP WITH US?
- Exceptionally high rating by our customers on Google Reviews, eBay and productreview.com.au

- Every purchase will support a charity of your choice (or our default charity) and make this world a better place. Please see our Philanthropy page.

- Extremely competitive pricing, please contact us to discuss further.

========

8-Channel High Power DSP Matrix Amplifier with Dante

• 8 channels, up to 8 Zones
• 100W into 8 Ohms, 200W into 4 Ohms
• Control System Integration
• Built in Matrix Delivering Analog or Digital audio to any zone

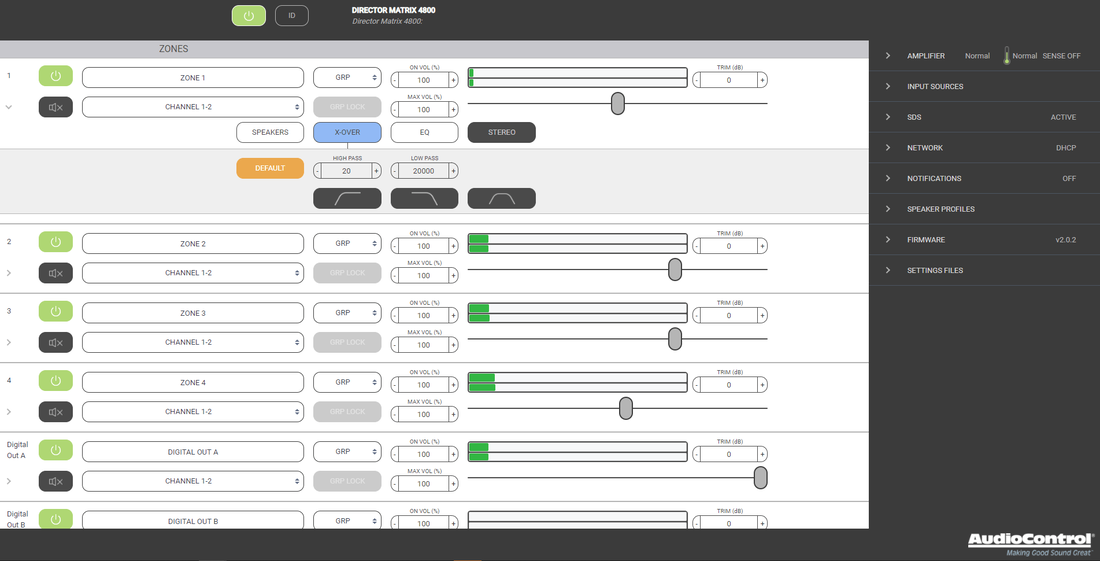

AudioControl Director® M Series amplifiers are among the highest-powered, most flexible multi-zone amplifiers worldwide, designed exclusively for commercial and residential custom integrators. In the most demanding applications for all system amplification and IP programmable signal processing tasks, the Director® M Series Model M4800D has the power and flexibility to operate as a standalone DSP amplifier or partnered with 3rd party over-control systems from companies such as Control4, Crestron, RTI and Savant. Configure graphic and parametric equalization, crossover points, volume settings, zone grouping, network monitoring, and more using the onboard DSP.

The Director® M Series Model M4800D adds Dante input/output matrixing and system integration with additional M4800D and AudioControl CM series amplifiers. Using the Dante Controller, physical M4800D inputs become virtual sources that are available to other Dante devices with input/amplification capabilities. Dante Controller may be used to route Dante sources from any device, making them accessible from the input selection menu and/or an automation system.

8CH, 100-watt channels into 8 Ohms become 200 watts per channel with 4-Ohm loudspeaker loads. When two channels bridge outputs, that single channel produces 400 watts into 8 Ohms, more than enough power for even the most demanding loudspeaker configurations. Two digital input busses selectable between Coaxial and TOSLINK with Coaxial outputs may be matrixed, along with every analog zone input to any zone or all zone outputs. Built-in speaker profiles from AudioControl’s Sound Partners™ program members offer M Series DSP-optimized tonally balanced speaker calibrations from a growing list of prominent loudspeaker manufacturers.

Discover for yourself the countless critical ways in which AudioControl Director® M Series amplifiers, designed, engineered, and manufactured in Seattle, USA, contribute to successful commercial or residential systems.

FEATURES

• Digital and analog input matrix
• High-resolution digital inputs, 32-96 kHz, 16/24-bit digital signals
• 100 watts per channel at 8 ohms, or 200 watts at 4 ohms, all channels actively driven
• Bridged for mono operation for 400 watts per bridged zone at 8 ohms.
• Discrete amp modules designed for long-term operation and optimal audio performance.
• Superior sound quality
• Energy-efficient Class D amplifier technology
• LightDrive Anti-clipping
• Control system integration
• Digital Signal Processing

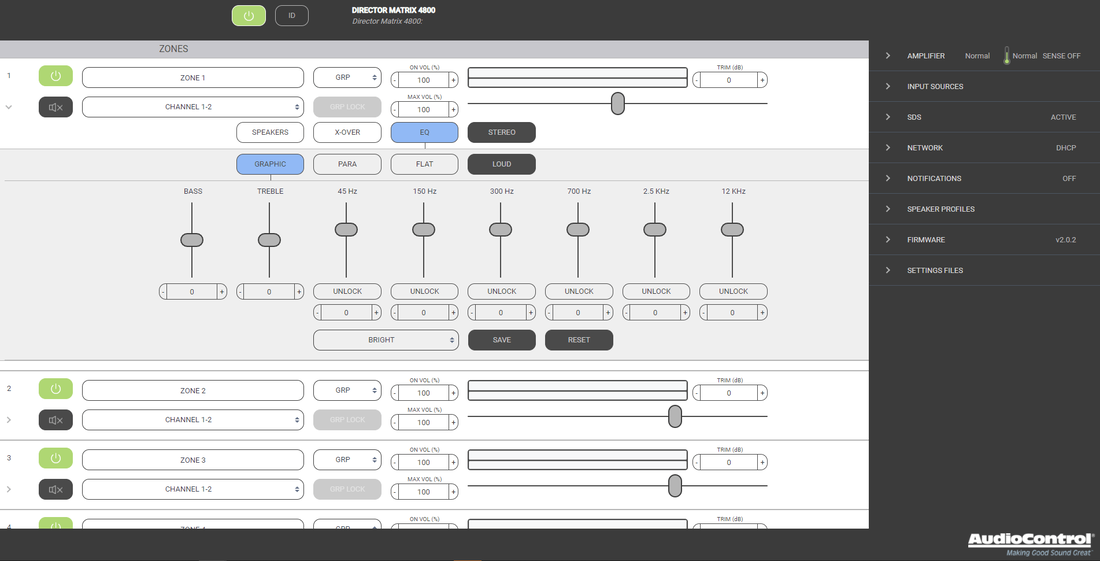

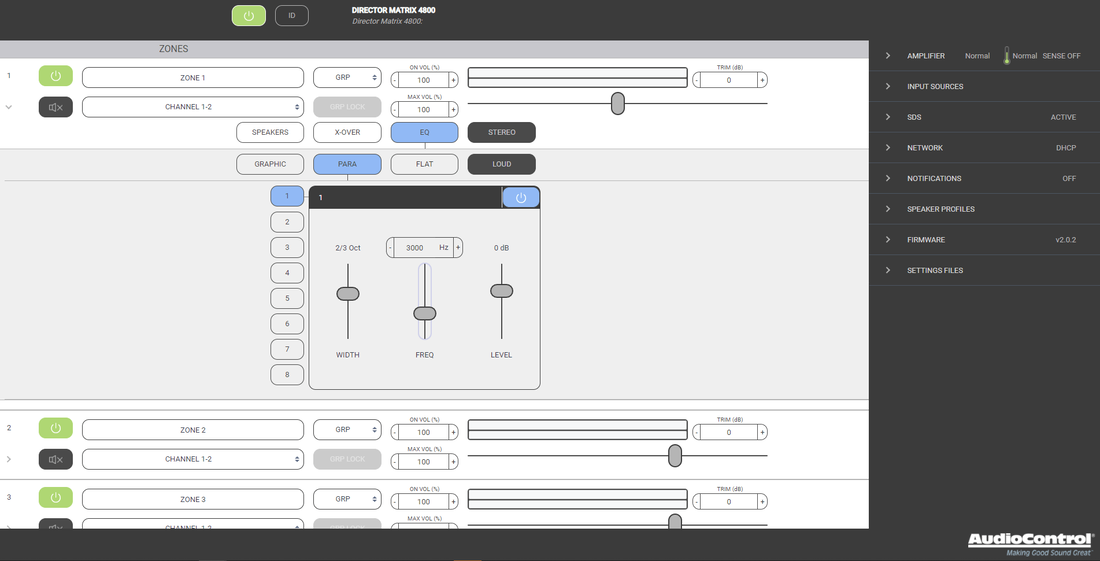

• Graphic and Parametric equalization settings
• Customizable high-pass and low-pass crossover filters
• Speaker profiles designed by popular speaker manufacturers
• Dante spoken here
• Self-resetting protection features
• Backed by a conditional five-year warranty.


POWER AND CONTROL AT YOUR FINGERTIPS
The Director® M Series feature on-board digital signal processing, graphic & parametric equalization by zone, network monitoring and programming, local and bus inputs, plus the addition of volume control, channel/zone grouping and zone audio presets. They also allow individual channel and zone selection via standard TCP/IP, delivering incredible power and AudioControl’s legendary audio performance.

Two digital inputs and outputs are both accessible in the matrixing so that any one of the input sources can be routed through the digital outputs. These digital outputs can be connected to other CM Series, The Director M or D Series or Architect digital inputs so that multiple amplifiers can receive any signal from any of the inputs.

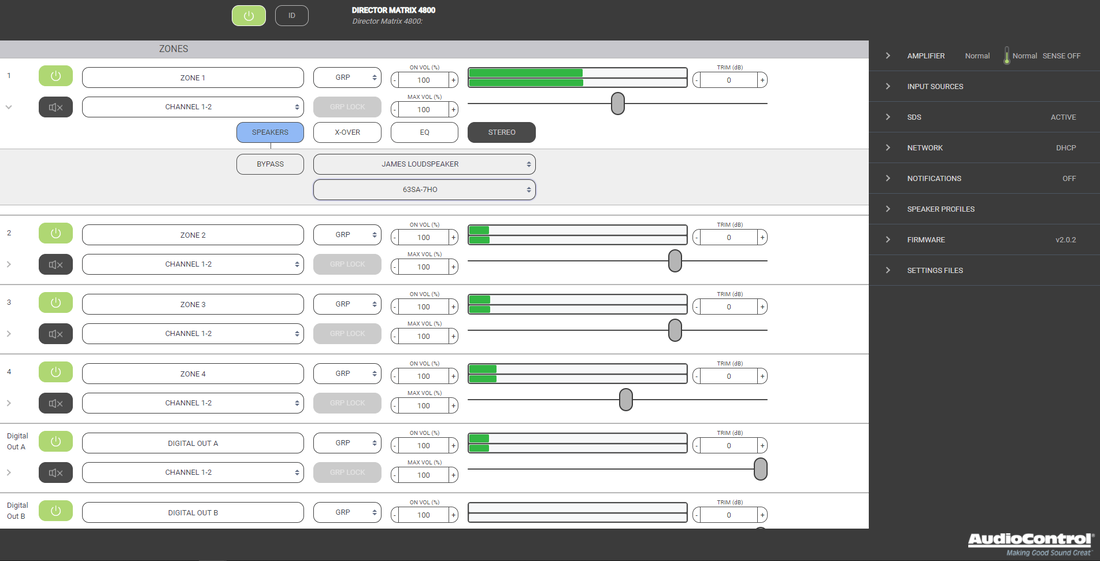

SPEAKER OPTIMIZATION PROFILES
AudioControl has partnered with a growing number of prominent architectural loudspeaker manufacturers to implement speaker performance profiles directly accessible from The Director® D Series onboard DSP. Each speaker manufacturer (Dynaudio, Gray, Monitor Audio, James Loudspeaker, NUVO, Origin Acoustics, Stealth Acoustics, Triad) has provided critical performance data to AudioControl, enabling tailored profiles to be created and stored in software form. Factoring in the individual room acoustics for each home, these speaker profiles achieve an important step in providing the custom integrator the tools to deliver a premium entertainment experience by calibrating systems for their clients.

SPECIFICATIONS

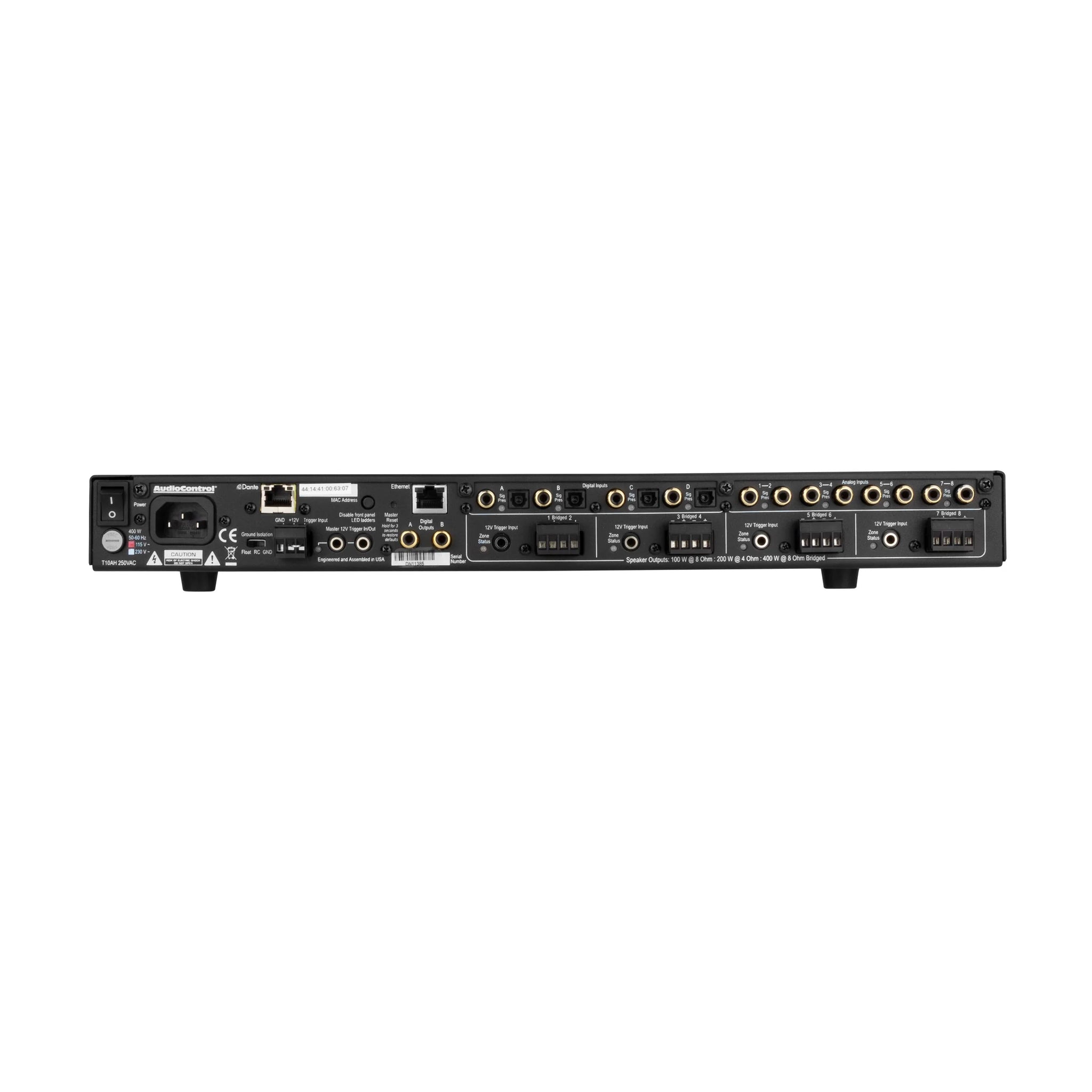

INPUTS
Analog Inputs: 4 Stereo Analog Local Inputs
Digital Inputs: 4 Coaxial/TOSLINK S/PDIF Inputs
Dante Inputs: 16 channels (Broadway chipset)
Input Sensitivity: 1 Vrms for full output, level at maximum

OUTPUTS
Amplifier Channels: 8
Power Output (8Ω): 100W per channel
Power Output (4Ω): 200W per channel
Power Output (8Ω Bridged Mono): 400W
Minimum Speaker Load: 4Ω
Preamp Outputs : 2 Coaxial Digital S/PDIF BUS Outputs
Dante Outputs – 16 channels (Broadway chipset)

PERFORMANCE
Signal to Noise: >95 dB, A-wtd, ref full output
DAC Specifications: 32 – 96 kHz sample rate, 16-/24 bit depth

CONTROL
Remote Power Trigger: +12 VDC or Dry Contact Closure

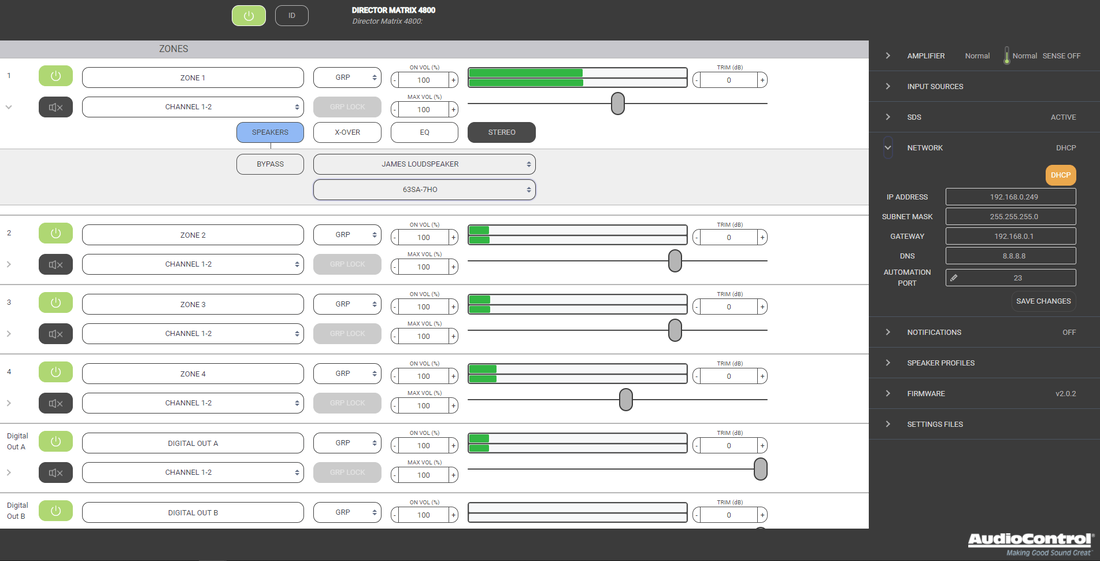

Network Connection/Protocol: 10BaseT Ethernet TCP/IP
Communication Protocol: HTTP or Telnet

BTU/HR OUTPUT
Standby: 6.5 BTU/hr
Idle (main power on, all channels off): 140 BTU/hr
All channels 1/8th rated power: 270 BTU/hr
Full power (20 A residential service limited): 1560 BTU/hr

AC POWER REQUIREMENTS
Standby: <1.9 Watts
Idle (main power on, all channels off): 41 watts
All channels 1/8th rated power: 186 watts
Full power (20 A residential service limited): 1800 watts

WEIGHT & DIMENSIONS
Dimensions Inches: 17” W x 15.5” D x 1.75” H (1 U)
Weight: 16.5 lbs (9.5 kg)

IN THE BOX
The Director Model M4800D, Speaker Connectors, Remote Connector, Power Cord, Manual
