Marantz MODEL M4
BRAND NEW - 3 YEARS WARRANTY
TAKE AN ADDITIONAL 2% OFF THE PRICE IF PAYING BY CASH / BANK DEPOSIT
This is parallel imported European stock that is fully compatible with Australian 240V power. An Australian power cable and tax invoice receipt will be provided.
There is an average lead time of 2-3 weeks for this product. We don't hold stock of this model, it is always ordered on demand from our suppliers. A more accurate dispatch time estimate will be provided upon purchase, otherwise please contact us prior to purchase.
FREE delivery or local pickup by appointment at Carlingford NSW.
WHY SHOP WITH US?
- Exceptionally high rating by our customers on Google Reviews, eBay and productreview.com.au
- Every purchase will support a charity of your choice (or our default charity) and make this world a better place. Please see our Philanthropy page.
- Warranty provided by Electronic Forefront Australia Pty Ltd (ABN: 84 618 813 488) of any manufacturer defects. Within 30 days, a replacement/refund will be offered. After 30 days, a repair/replacement/refund will be offered depending on the nature of the defect.
========
8 Channel Distribution Amplifier with 100W and Powered by HEOS™

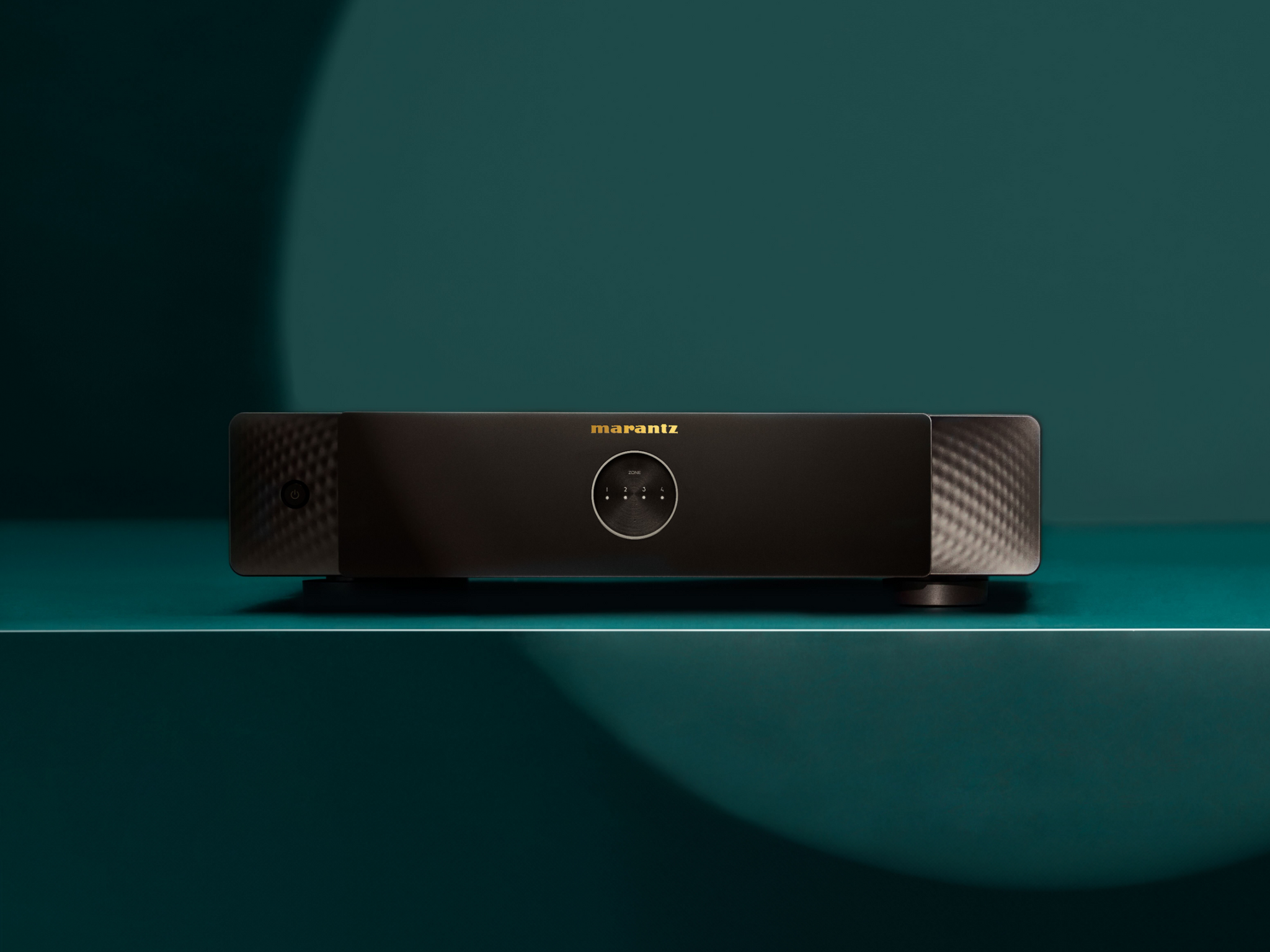

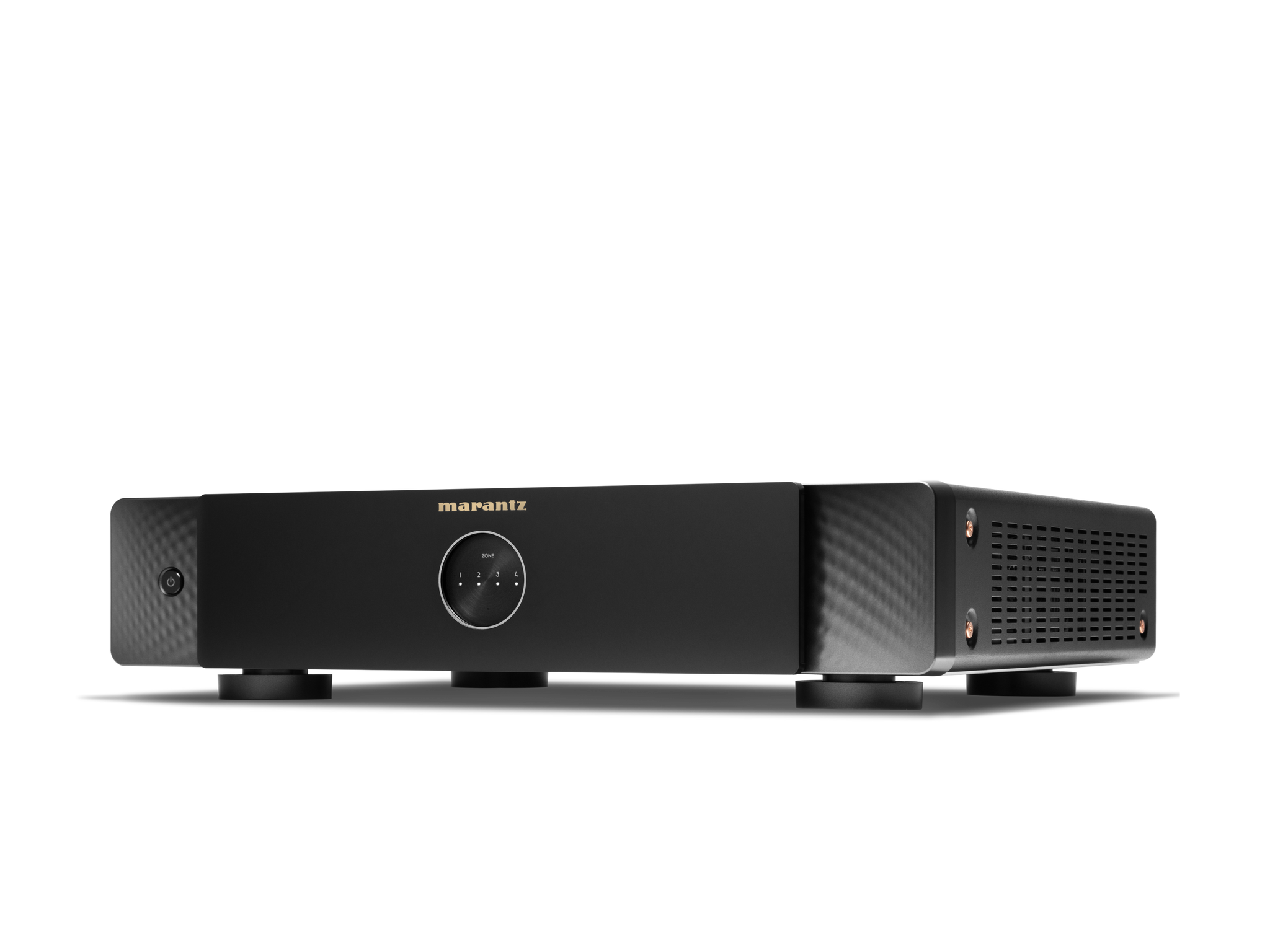

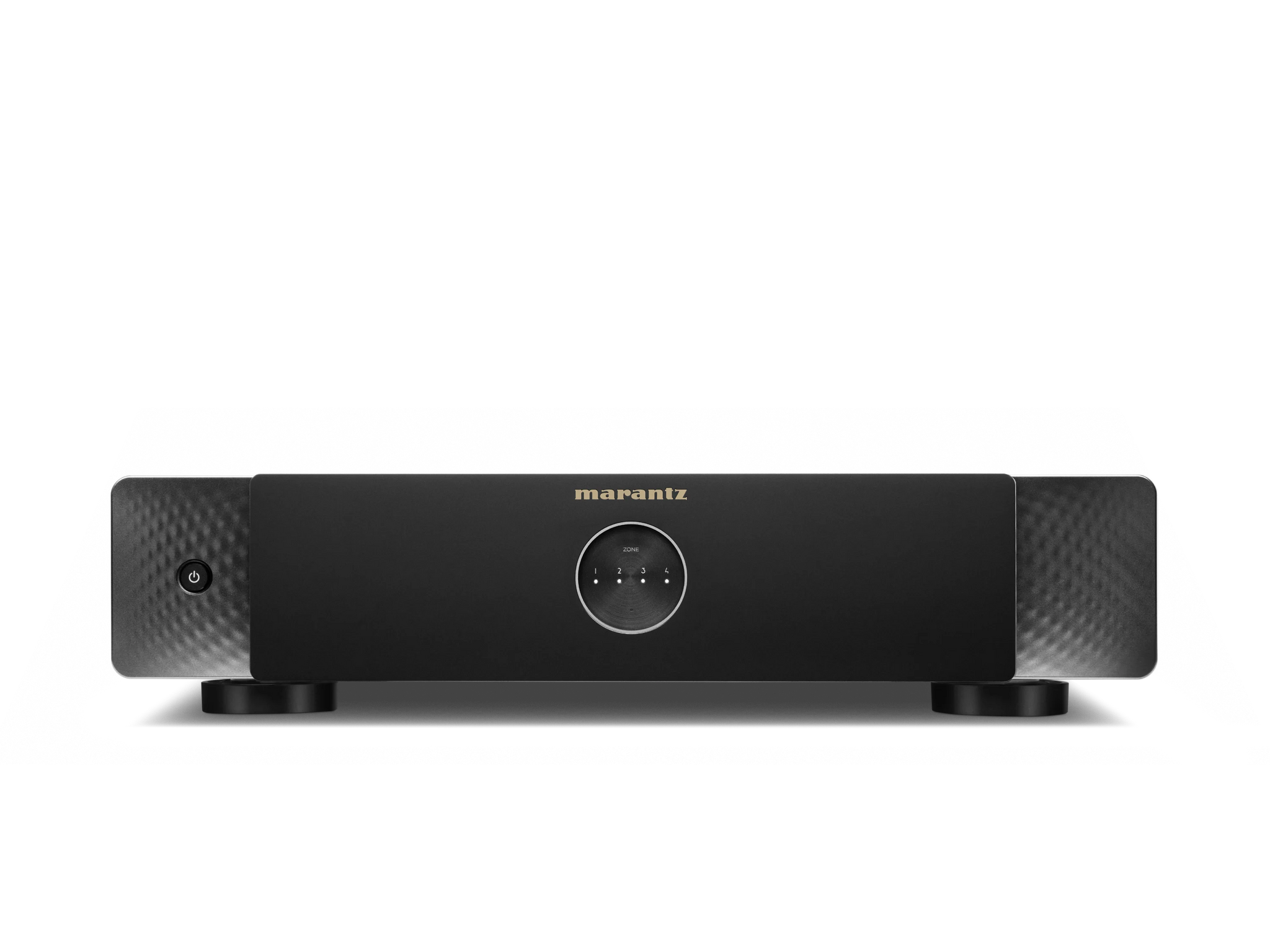

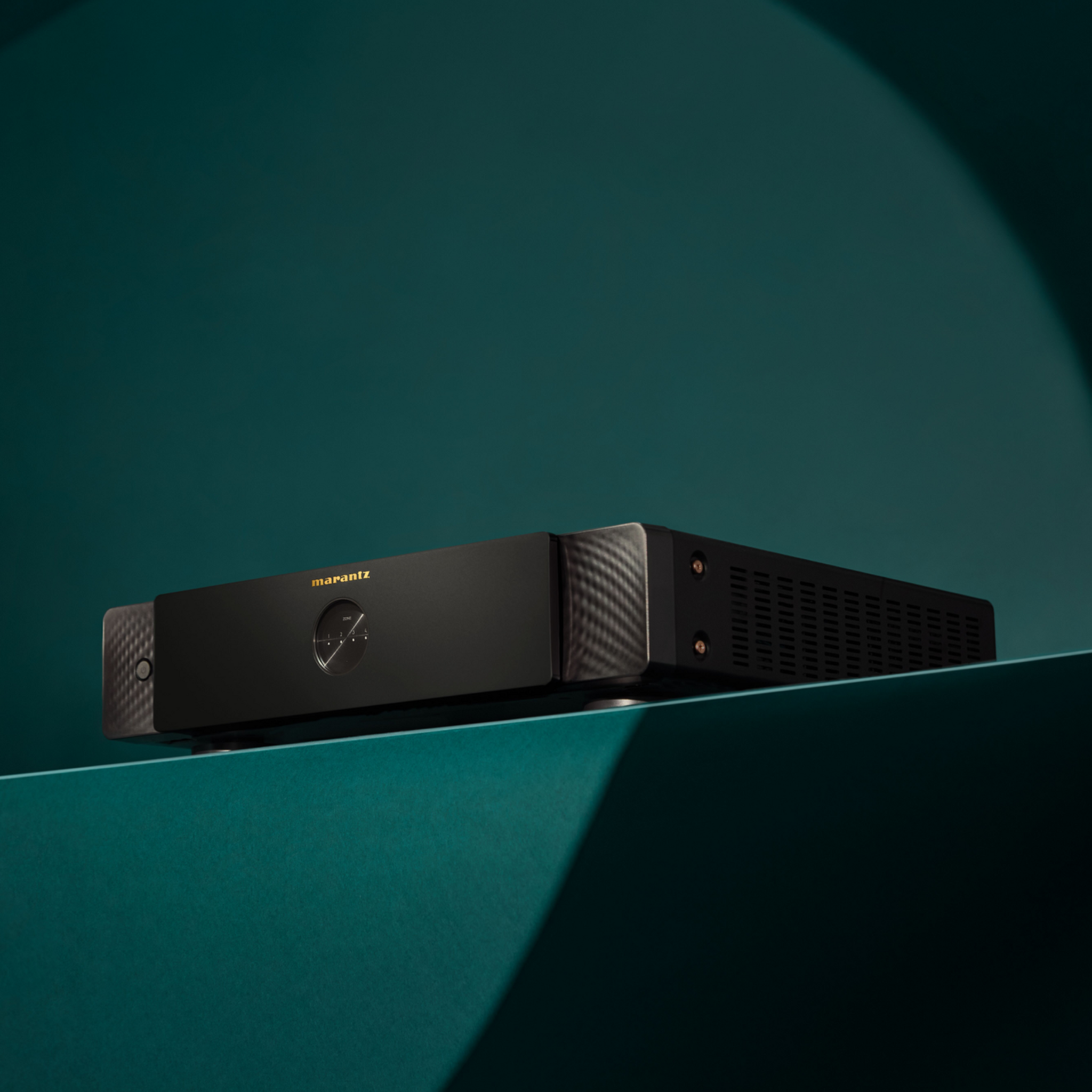

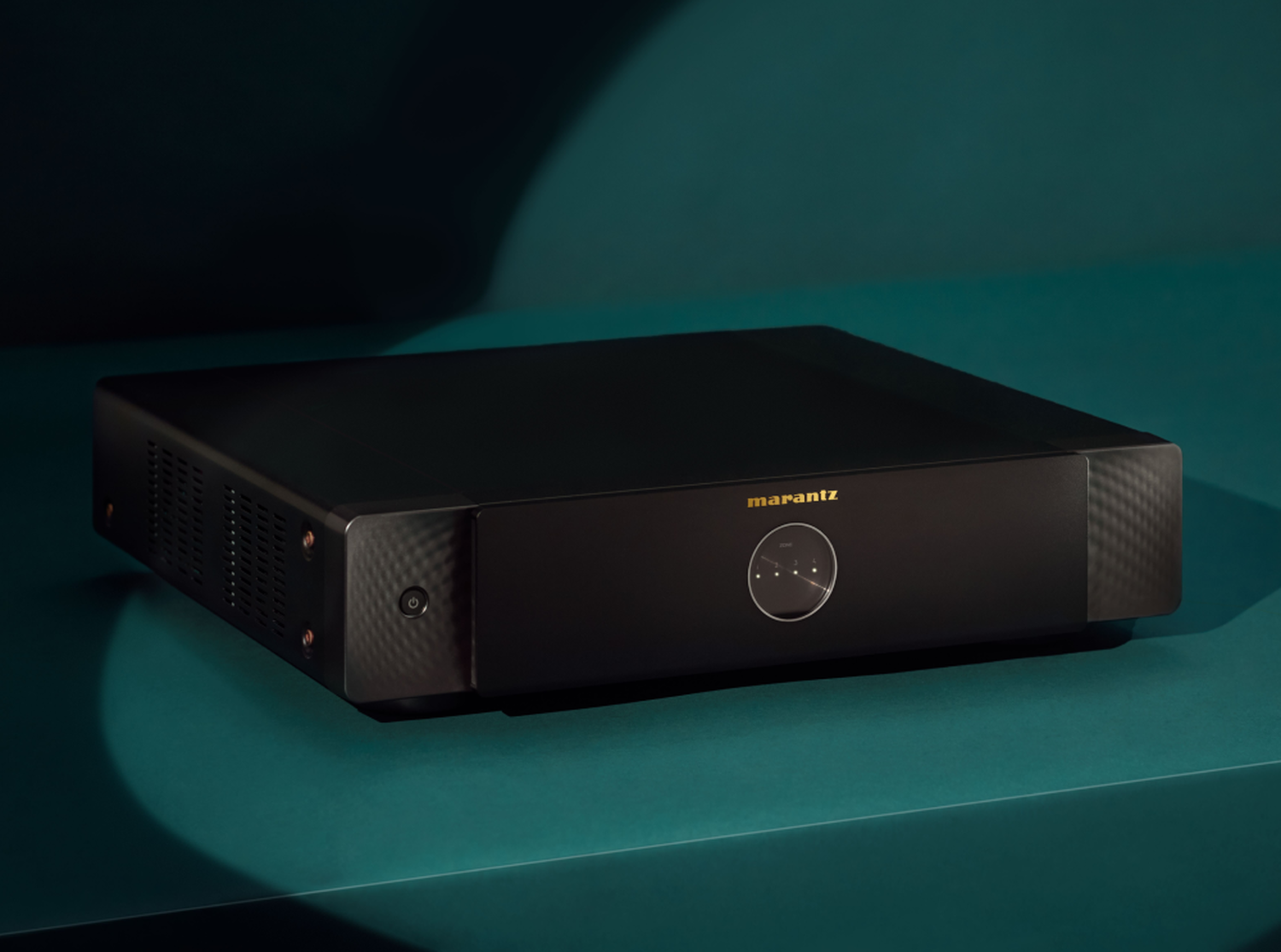

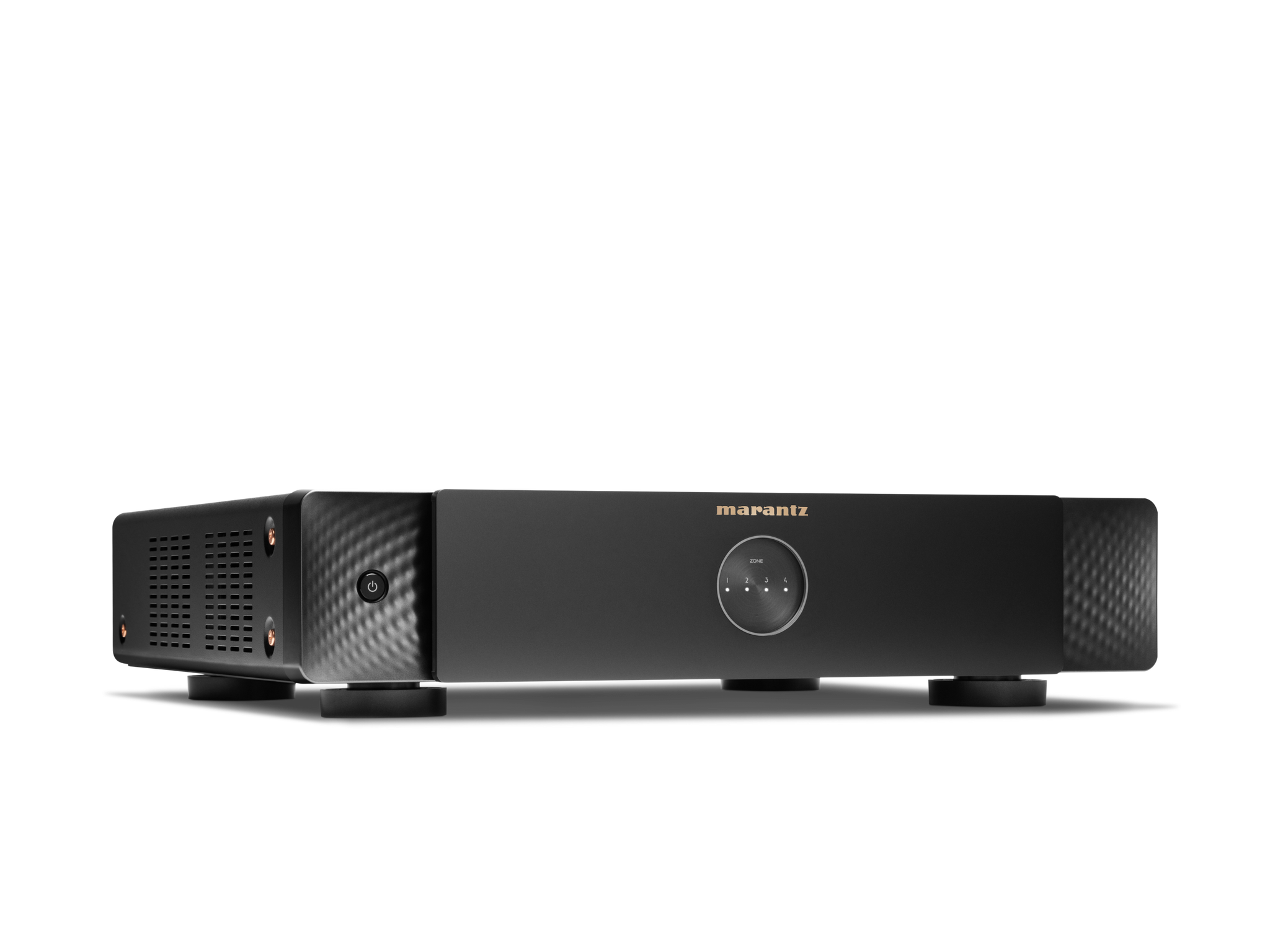

MODEL M4 is a four-zone, rack-mountable distribution amplifier engineered to offer superb Marantz sound from a wide range of streamed music services, locally connected music sources, and your TV.
- Crafted in Shirakawa, Japan
- 8 Channels
- 100 Watts per Channel

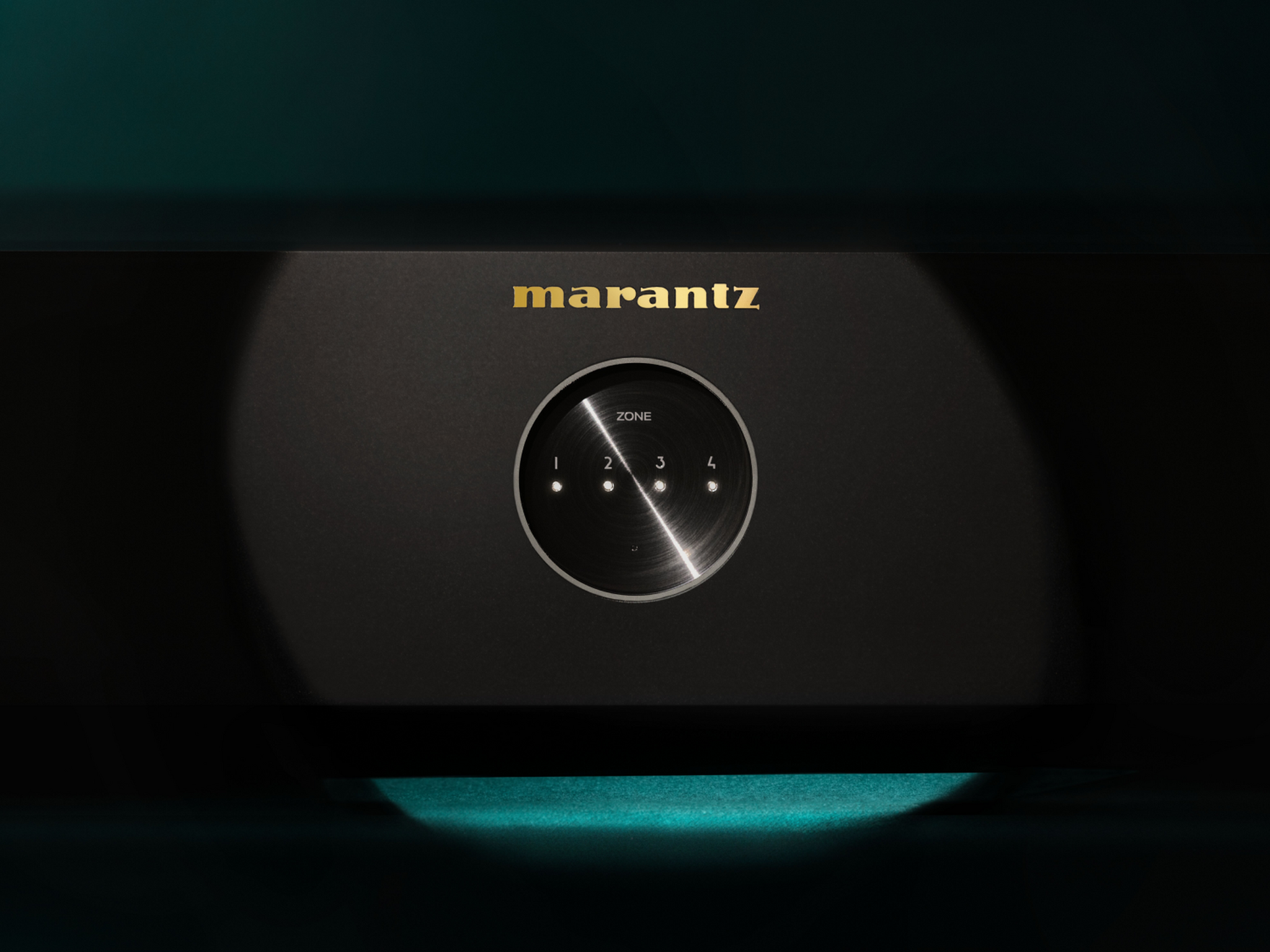

- Four Zones
- Dolby Digital
- HEOS Built-in
Key Technologies
Distribution Done Differently
MODEL M4 offers an innovative and intelligent take on traditional distribution amplifier designs. A rack-mountable distribution amplifier for dedicated music lovers, it delivers superior sound from a wide range of streamed music services, locally connected music sources, and your TV (via the Optical inputs). MODEL M4’s industrial design complements the latest generation of Marantz hi-fi and AVR products. It has been carefully engineered to deliver the extreme robustness, simple control functionality, and flexible configuration that is essential to successful home integration.
Power Where You Need It
MODEL M4 delivers enough power to drive speakers across four rooms in your home. For even more power, use Bridge Mode which offers up to 4 x 200W of output.
Any Sound, Anywhere

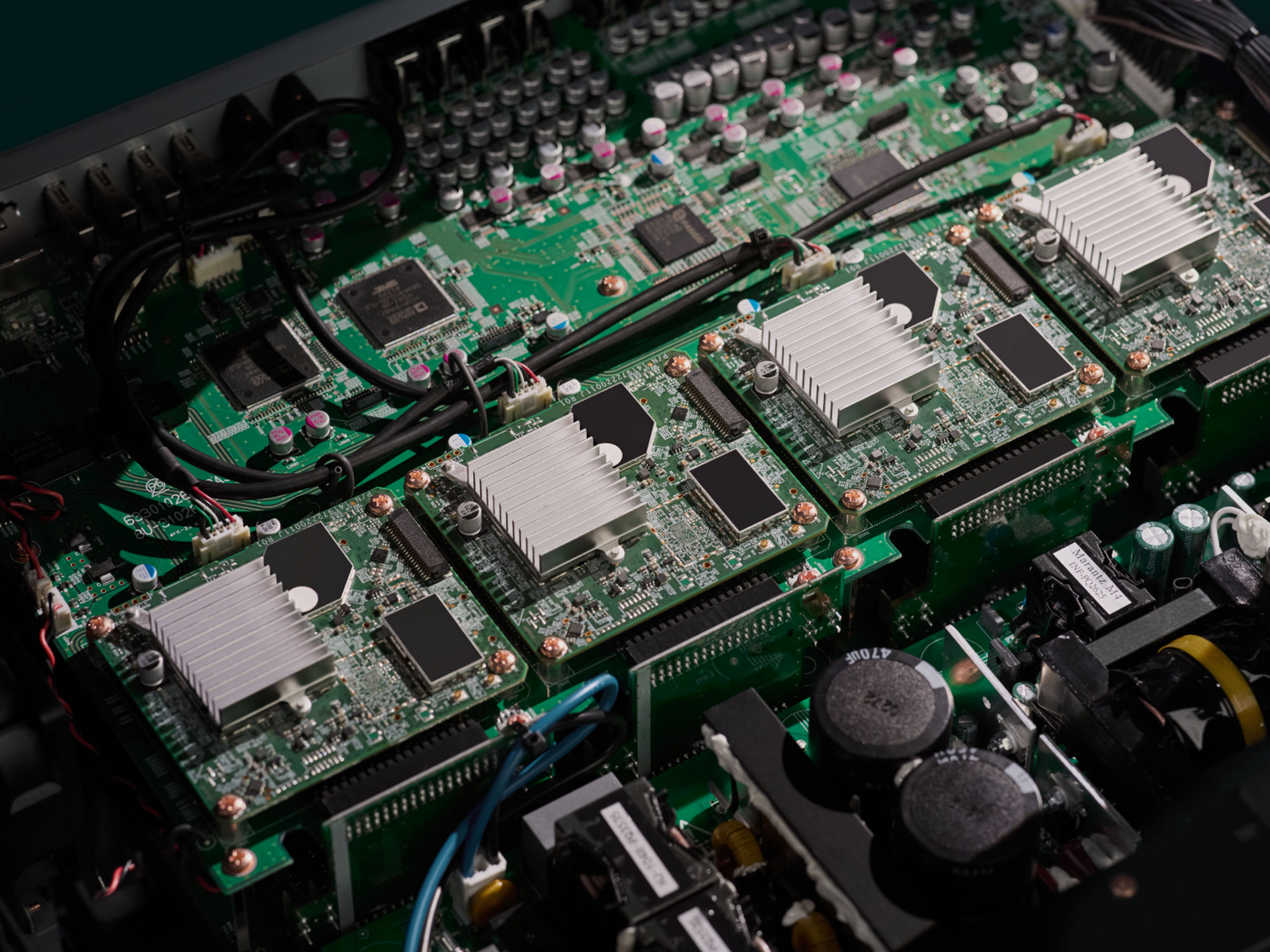

Stream your favourite music or TV audio (via the Optical inputs), independently or grouped, in four different rooms with MODEL M4’s four built-in HEOS modules.
Fully Feature, Fully Flexible
With all the onboard features every integrator could need, MODEL M4 is extremely robust, easy to use, and flexible, making multi-room effortless.
Engineered for High Resolution
Whether it’s using streamed services, your network, optical digital, or USB, with MODEL M4 you’ll experience your sound with the high resolution it deserves.
Marantz Musical Digital Filtering
MMDF is a unique and sophisticated digital filtering technology that reveals the natural detail and tonality in sound.
Search for Songs Across Platforms
HEOS® has a search feature that lets you find and stream from the world’s leading music platforms, including TIDAL, Pandora, and Amazon Music HD.

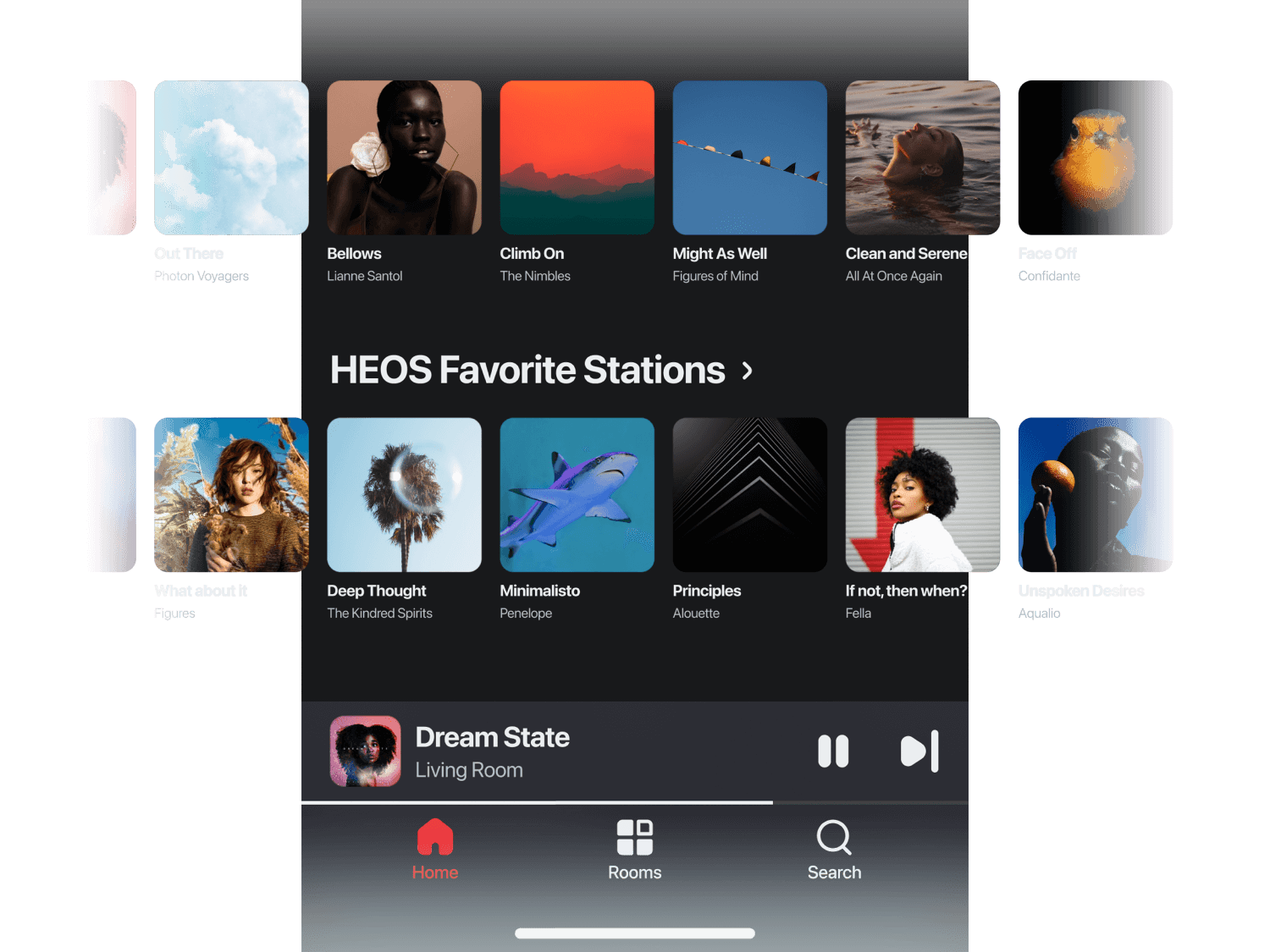

Your Whole Home in One Place

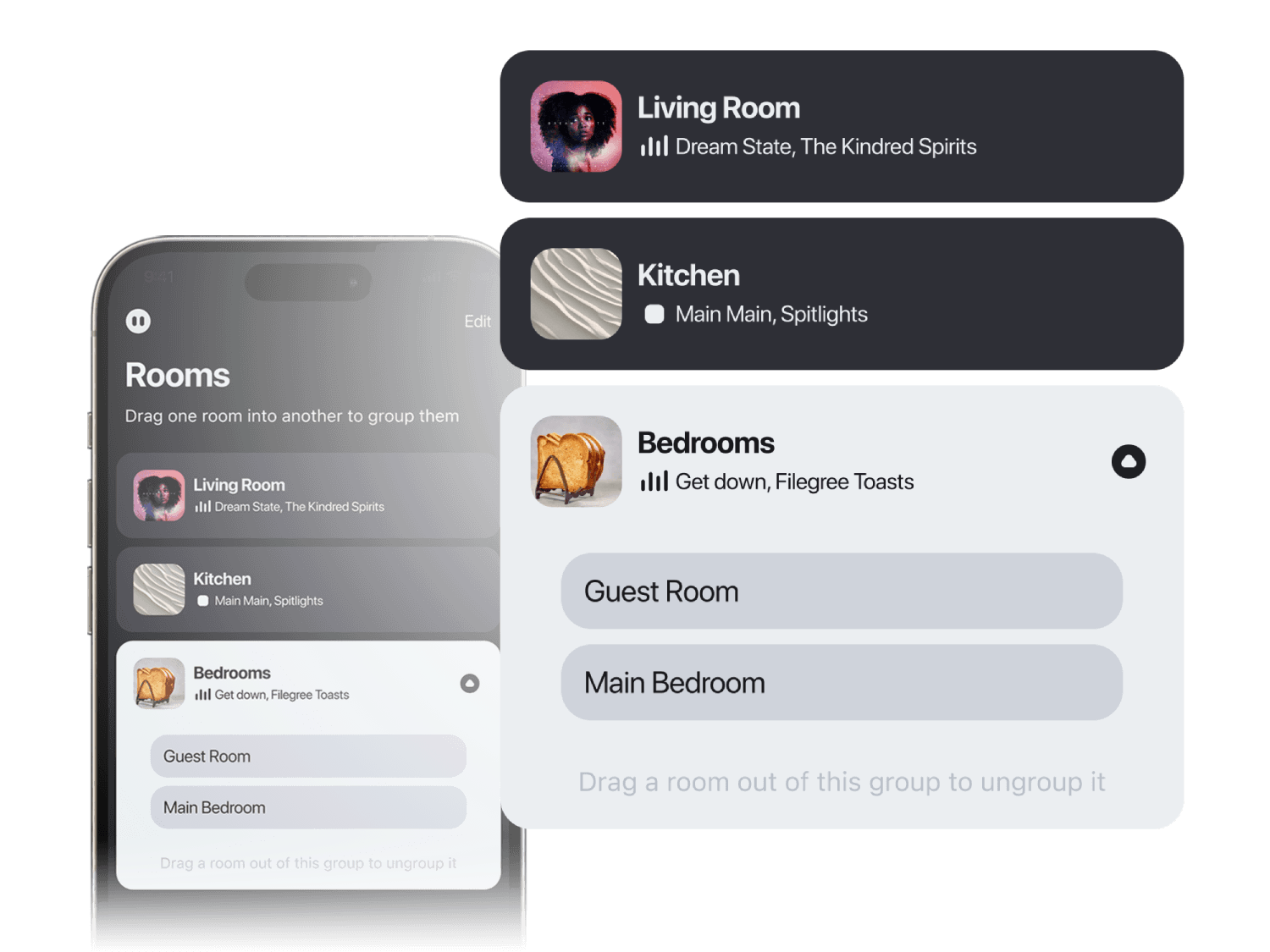

Devices Powered by HEOS™ allow you to control multiple rooms, all with the HEOS app.

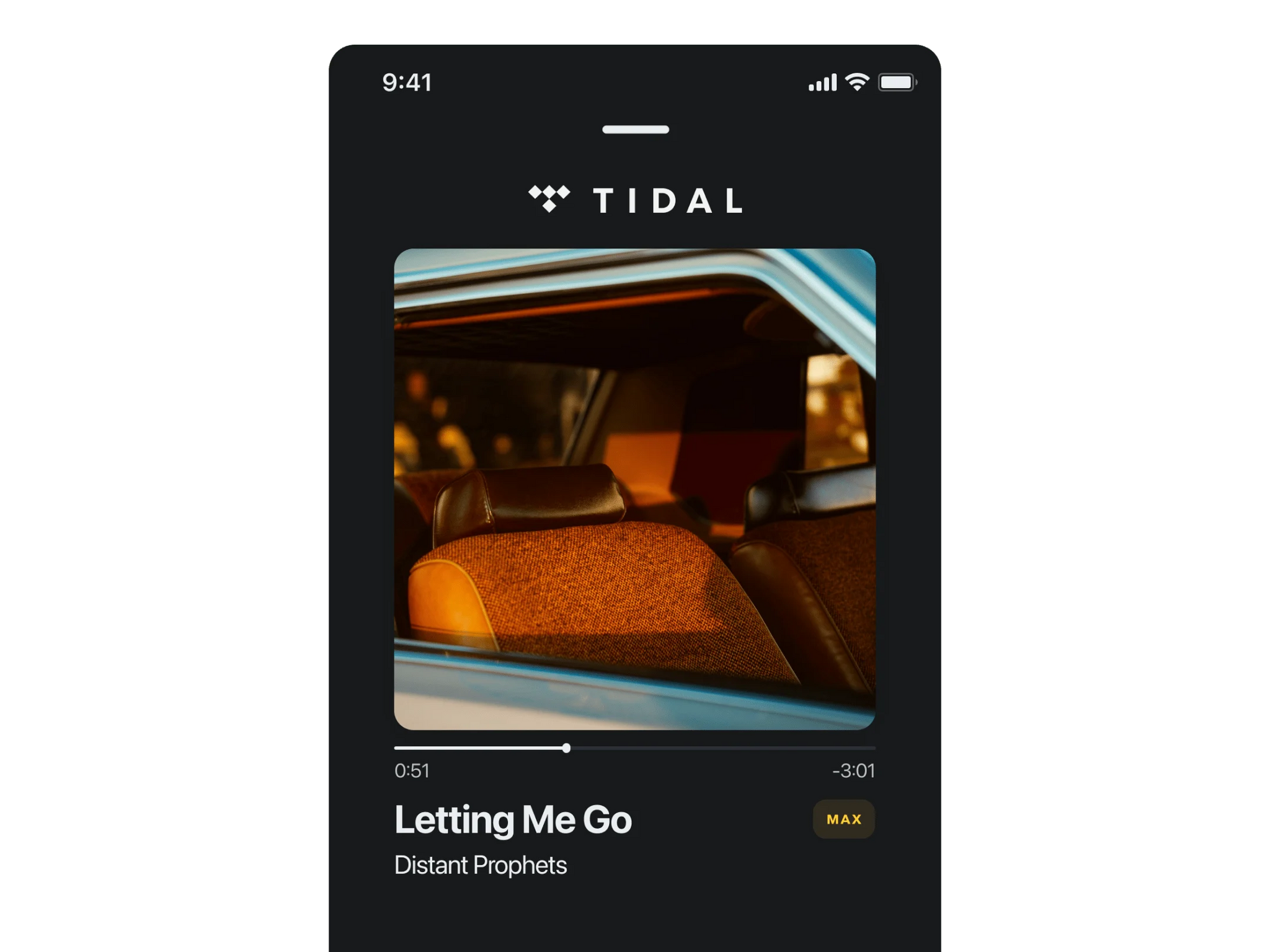

Hi-Resolution Streaming
Use your HEOS-enabled Marantz devices to access high-resolution music streaming and discover a whole new way to love your favourites.
SPECIFICATIONS
Amplifier
Power Amplifier Rated output & THD (8 ohm): 8 X 100 W (8 Ω/ohms, 20 Hz to 20 kHz, T.H.D. 0.05 %)
Power Amplifier Rated output & THD (4ohm): 8 X 125 W (4Ω/ohms, 1 kHz, T.H.D. 0.1%
Frequency Response: 20 Hz to 20 kHz : ±1 dB
Connected loudspeaker Impedance: 4 – 16 Ω/ohms

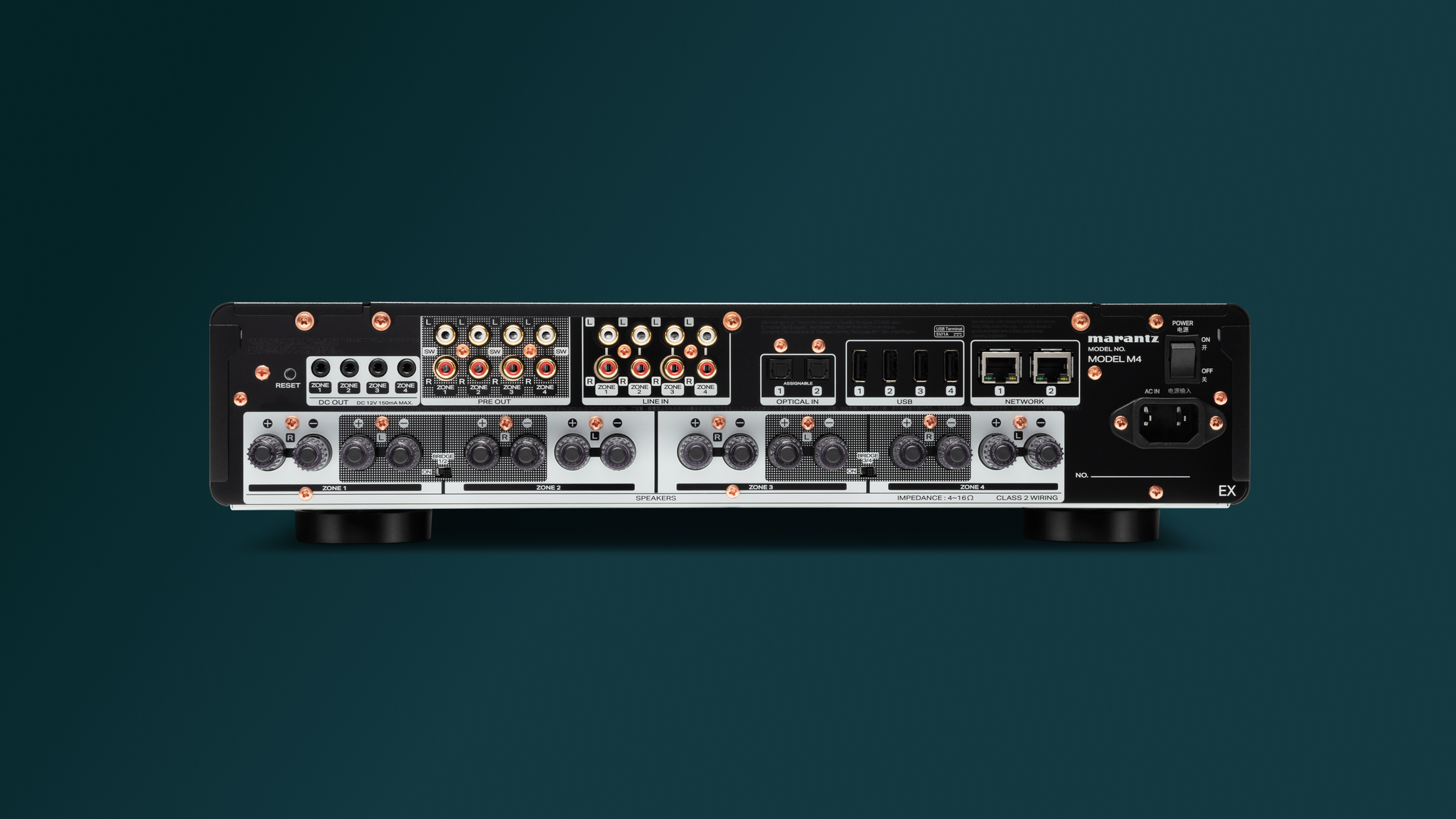

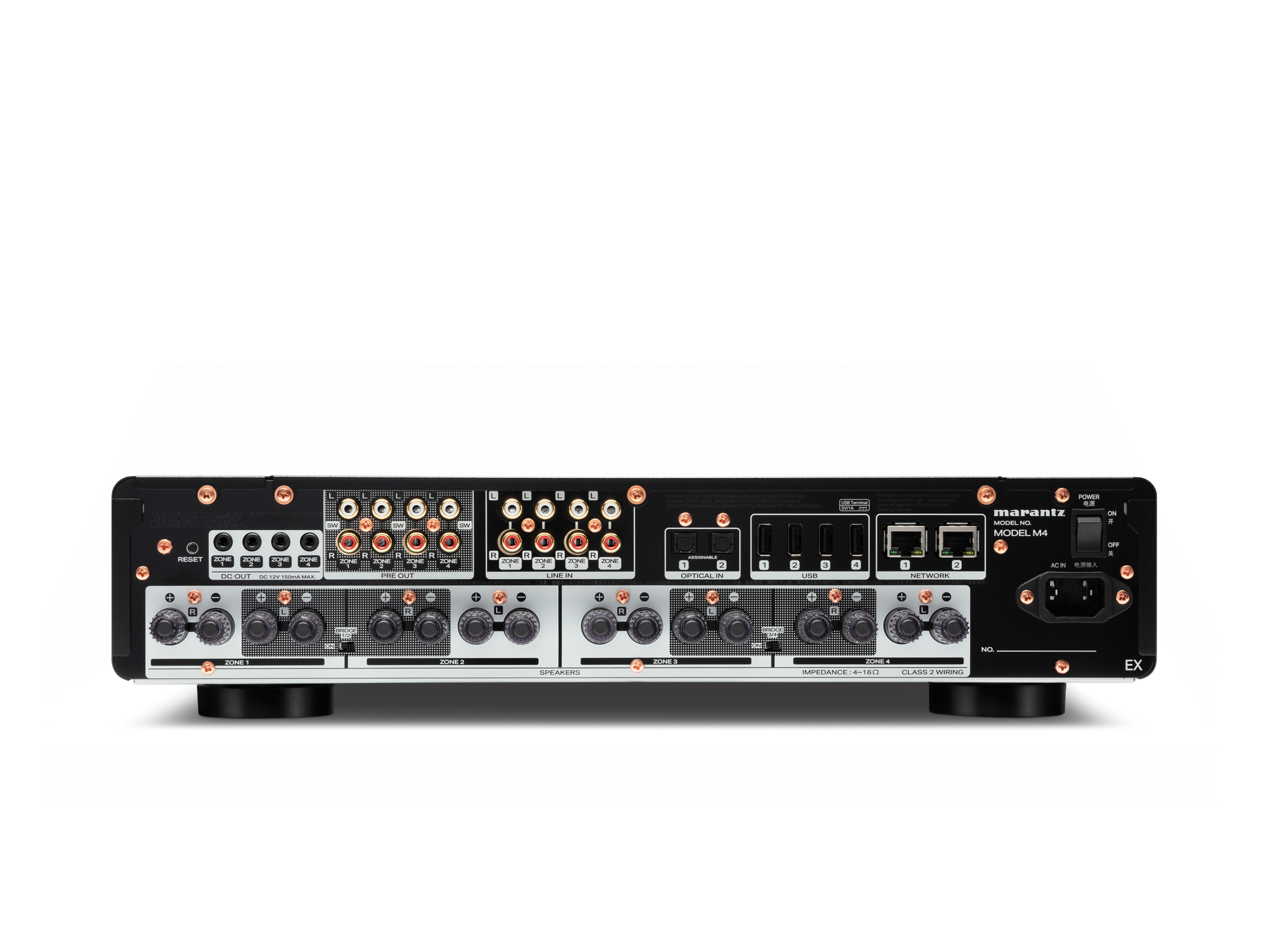

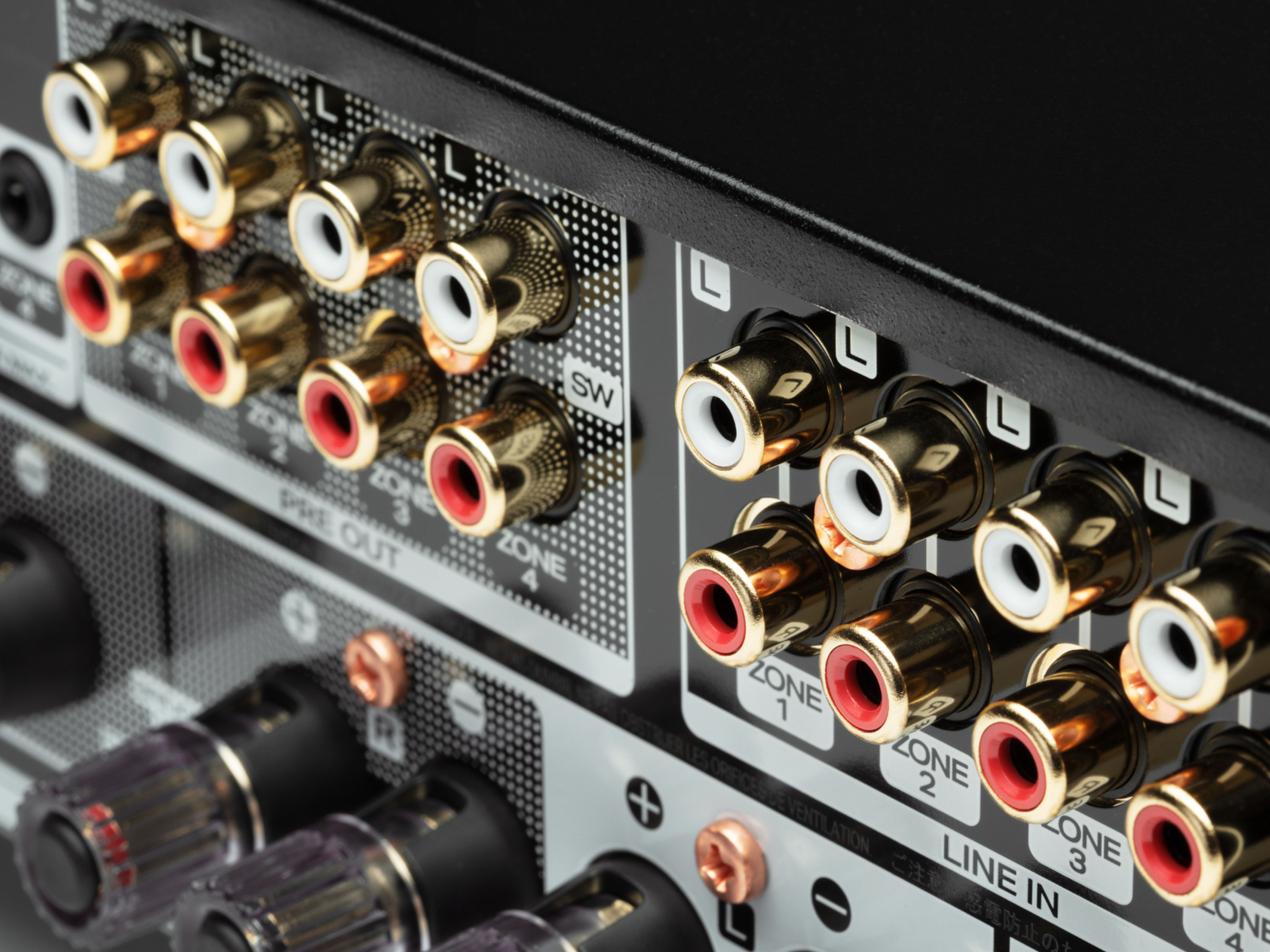

Audio Inputs / Outputs
Loudspeaker Binding Posts: 4-way binding posts
Digital Inputs: TOSLINK (2)
Analog Inputs: RCA L/R (4)
Preouts: RCA L/R (4)
Subwoofer Out: RCA Mono (4) (selectable)
Inputs Audio Options
Channel Assignments: Stereo (Default), Dual Mono
Volume Limit: 80-100%
Balance: -15dB to +15dB
Adjustable High Pass / Low Pass Filters: 40-250 Hz / 40-120 Hz
EQ: Bass, Treble -5dB to +5dB
Sound Modes: Stereo, Direct, Virtual, Dialog Enhancer, Night Mode
TV Sound Grouping: Yes
Audio Format Support
Decoding: Dolby Digital, LPCM, DSD
Stereo PCM / Multi-channel PCM: Yes / Yes
Stereo File Formats (HEOS network share or USB): WMA: up to and including 192 kbps, AAC & MP3: up to and including 320 kbps, WAV, ALAC, FLAC: up to and including 24-bit/192kHz, DSD: 2.8 MHz, 5.6MHz
Streaming Technologies
Bluetooth Receive: N/A
Bluetooth Transmit: N/A
AirPlay: AirPlay 2
Spotify: Spotify Connect
Music Services and Sources
Music Services Supported ((HEOS®, subject to change and local availability): Pandora, Spotify, TuneIn, SiriusXM, Amazon Music, Tidal, Tidal HiRes, iHeartRadio, Deezer, Deezer HiFi, Mood:Mix, Sony Hi-Res, AWA, QPlay, SoundCloud.
Music stored on mobile device: Yes (iOS, Android or Kindle Fire)
NAS (Network Attached Storage): Network share
USB Storage Device Playback: Yes (4) (FAT32, NTFS formatted drives)
Networking & Control
Wired Connectivity: Ethernet (2)
Wireless Connectivity: N/A
IR Input: N/A
IR Learning: N/A
Control System Compatibility via TCP/IP: Creston, Control4, AMX
HEOS® App: iOS, Android, Kindle Fire
Trigger Output DC 12V: Yes (4)
General
Product Colour: Black
User Interface: Reset button, Front power button, Rear power switch
Dimensions (W x D x H) Inches: 17.4 x 16.34 x 4.17
Dimensions (W x D x H) mm: 442 x 415 x 106
Weight (lbs): 18
Weight (kg): 8
